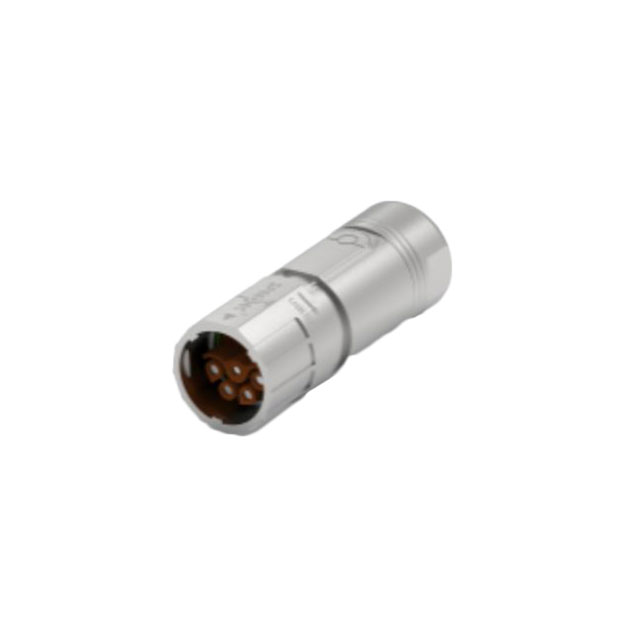

HSA405N00580100000

Active

TE Intercontec

CONN PLG HSG FMALE 7POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	HSA405N00580100000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

CONN PLG HSG FMALE 7POS INLINE

Part	Orientation	Shell Material	Connector Type	Contact Shape	Housing Color	Ingress Protection	Material Flammability Rating	Type	Includes	Features	Insert Material	Note	Mounting Type	Shell Finish	Shielding	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
TE Intercontec HSA405N00580100000	Keyed	Zinc Die Cast	Plug Housing	Circular	Silver	IP66/IP67	UL94 V-0	For Female Sockets	1 Backshell, 1 Cable Clamp, 1 Connector	Backshell, Cable Clamp, Coupling Nut	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Free Hanging (In-Line)	Nickel	Shielded	Push-Twist	7	-20 C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (2 + 4 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
