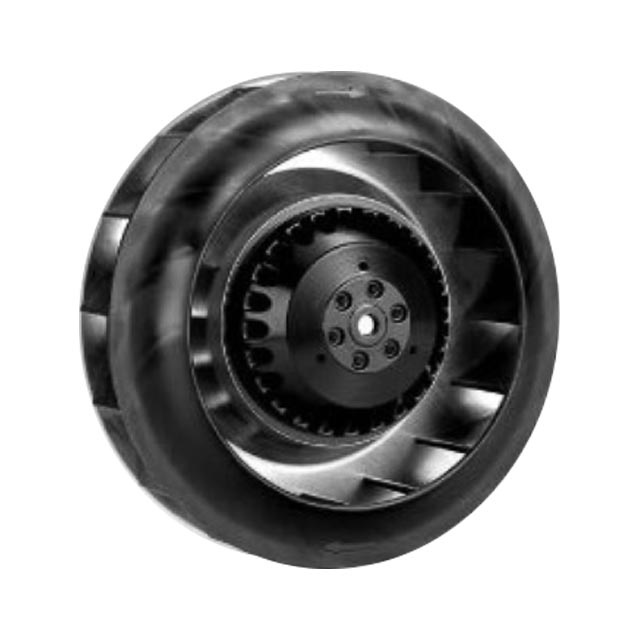

OAB18055-22-1WB

Active

Orion Fans

FAN IMP MTRZD 182X55MM 230VAC W/

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 182X55MM 230VAC W/

Technical Specifications

Parameters and characteristics for this part

Specification	OAB18055-22-1WB

Air Flow	290 CFM
Air Flow	8.12 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.34 A
Fan Type	Motorized Impellers
Features	Capacitor
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Thermoplastic
Material - Frame	Aluminum
Noise	67 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	78 W
RPM	2800 RPM
Size / Dimension	Round
Size / Dimension [diameter]	182 mm
Static Pressure	1.4 in H2O
Static Pressure	348.7 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	1.2 kg
Weight	2.7 lbs
Width [y]	55 mm

Part	Lifetime @ Temp.	Features	Size / Dimension [diameter]	Size / Dimension	Noise	Bearing Type	Current Rating (Amps)	Termination	Fan Type	Static Pressure	Static Pressure	Voltage - Rated	Width [y]	Material - Frame	Power (Watts)	Material - Blade	RPM	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Ingress Protection	Weight	Weight
Orion Fans OAB18055-22-1WB	40000 Hrs	Capacitor	182 mm	Round	67 dB	Ball	0.34 A	4 Wire Leads	Motorized Impellers	1.4 in H2O	348.7 Pa	230 VAC	55 mm	Aluminum	78 W	Thermoplastic	2800 RPM	290 CFM	8.12 m³/min	60 °C	60 °C	-40 °C	-40 °C	IP55 - Dust Protected Water Resistant	1.2 kg	2.7 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	8	$ 123.28

General part information

Fan Motorized Impellers 230VAC Round - 182mm Dia Ball 290.0 CFM (8.12m³/min) 4 Wire Leads
