D1131SH65TXPSA1

Active

Infineon Technologies

6500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 120 MM DIA AND A HEIGHT OF 26 MM

Search across all available documentation for this part.

Active

Infineon Technologies

6500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 120 MM DIA AND A HEIGHT OF 26 MM

Technical Specifications

Parameters and characteristics for this part

Specification	D1131SH65TXPSA1

Current - Average Rectified (Io)	1100 A
Current - Reverse Leakage @ Vr	150 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	140 °C
Operating Temperature - Junction [Min]	0 °C
Package / Case	DO-200AE
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	6500 V
Voltage - Forward (Vf) (Max) @ If	5.6 V

Part	Mounting Type	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Speed	Speed
Infineon Technologies D1131SH65TXPSA1	Chassis Mount	1100 A	0 °C	140 °C	150 mA	5.6 V	DO-200AE	6500 V	Standard	Standard Recovery >500ns	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1464.11

General part information

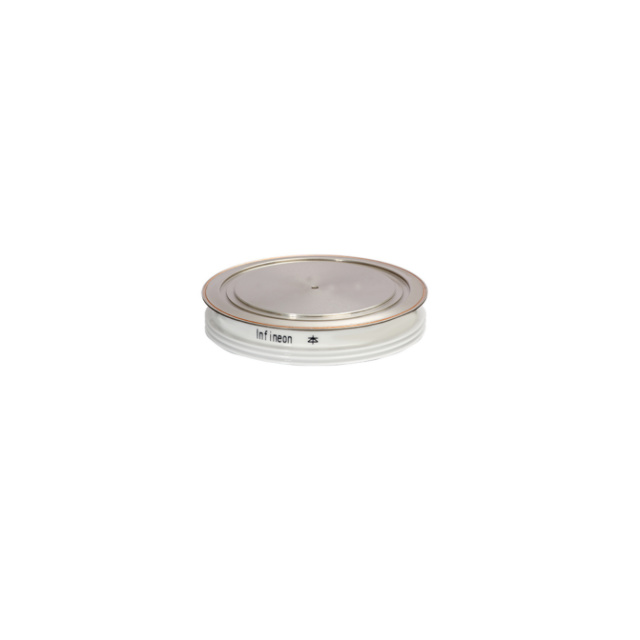

The D1131SHIGCT-Diode discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 120mm and a height of 26mm.
