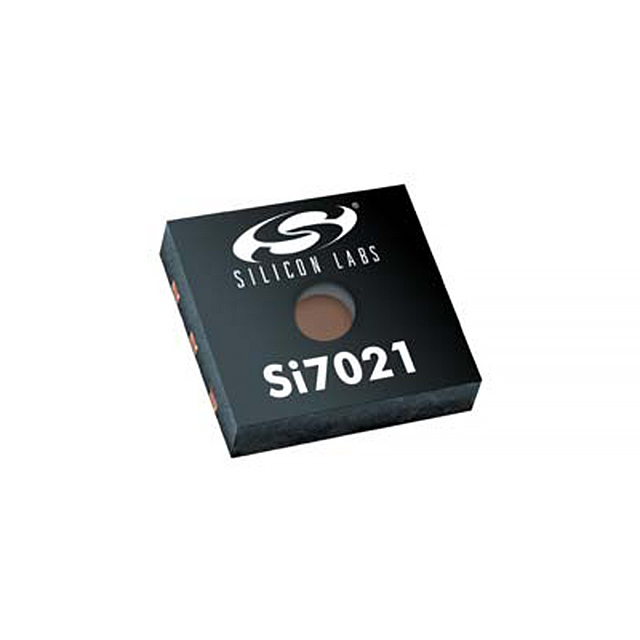

SI7021-A20-YM1R
Silicon Labs
SENSOR RHT DGTL AUTO 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SI7021-A20-YM1R
Silicon Labs
SENSOR RHT DGTL AUTO 6DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SI7021-A20-YM1R |
|---|---|
| Accuracy | 3 % RH |
| Humidity Range [Max] | 100 % RH |
| Humidity Range [Min] | 0 % RH |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Output Type | I2C |
| Response Time | 18 s |
| Sensor Type | Temperature, Humidity |
| Supplier Device Package | 6-DFN (3x3) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
SI7021 Series
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Output Type | Humidity Range [Min] | Humidity Range [Max] | Supplier Device Package | Response Time | Accuracy | Sensor Type | Output | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b | 85 °C | -40 °C |
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b | 85 °C | -40 °C |
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b | ||
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b | 125 °C | -40 °C |
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b | 85 °C | -40 °C |
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b | 85 °C | -40 °C |
Silicon Labs | 3.6 V | 1.9 V | Surface Mount | I2C | 0 % RH | 100 % RH | 6-DFN (3x3) | 18 s | 3 % RH | Humidity Temperature | 12 b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.40 | |
| 10 | $ 9.92 | |||
| 25 | $ 9.17 | |||
| 100 | $ 7.93 | |||
| 500 | $ 7.44 | |||
| 1000 | $ 6.94 | |||
| Digi-Reel® | 1 | $ 12.40 | ||
| 10 | $ 9.92 | |||
| 25 | $ 9.17 | |||
| 100 | $ 7.93 | |||
| 500 | $ 7.44 | |||
| 1000 | $ 6.94 | |||
| Tape & Reel (TR) | 2500 | $ 6.82 | ||
Description
General part information
SI7021 Series
Humidity, Temperature 0 ~ 100% RH I2C ±3% RH 18 s Surface Mount
