EYW12038048BM-12

Active

YS TECH USA

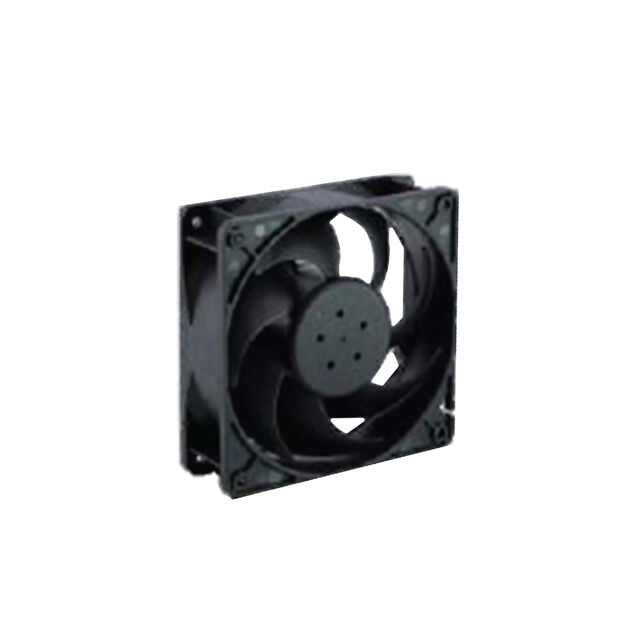

FAN AXIAL 120X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 120X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EYW12038048BM-12	EYW12038048 Series

Air Flow	5.43 m³/min	5.43 - 7.72 m³/min
Air Flow	194 CFM	194 CFM
Air Flow	-	275.6 CFM
Bearing Type	Ball	Ball
Current Rating (Amps)	0.55 A	0.55 - 1.4 A
Fan Type	Tubeaxial	Tubeaxial
Lifetime @ Temp.	75000 Hrs	65000 - 75000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	-	69.2 dB(A)
Power (Watts)	26.4 W	26.4 - 67.2 W
RPM	5000 RPM	5000 - 7000 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	1.15 in H2O	1.15 - 2.4 in H2O
Static Pressure	286.5 Pa	286.5 - 597.8 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	60 V	60 V
Voltage Range [Min]	35 VDC	35 VDC
Width [y]	38 mm	38 mm

FAN AXIAL 120X38MM 48VDC WIRE

Part	Bearing Type	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	RPM	Termination	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Power (Watts)	Air Flow	Air Flow	Width [y]	Fan Type	Noise	Voltage - Rated [custom]	Lifetime @ Temp.	Air Flow
YS TECH USA EYW12038048BS-12	Ball	1.4 A	35 VDC	60 V	2.4 in H2O	597.8 Pa	7000 RPM	2 Wire Leads	120 mm	120 mm	Polybutylene Terephthalate (PBT)	67.2 W	275.6 CFM	7.72 m³/min	38 mm	Tubeaxial	69.2 dB(A)	48 VDC	65000 Hrs
YS TECH USA EYW12038048BM-12	Ball	0.55 A	35 VDC	60 V	1.15 in H2O	286.5 Pa	5000 RPM	2 Wire Leads	120 mm	120 mm	Polybutylene Terephthalate (PBT)	26.4 W		5.43 m³/min	38 mm	Tubeaxial		48 VDC	75000 Hrs	194 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 194.0 CFM (5.43m³/min) 2 Wire Leads
