69-36PU-WR

Active

NTE Electronics, Inc

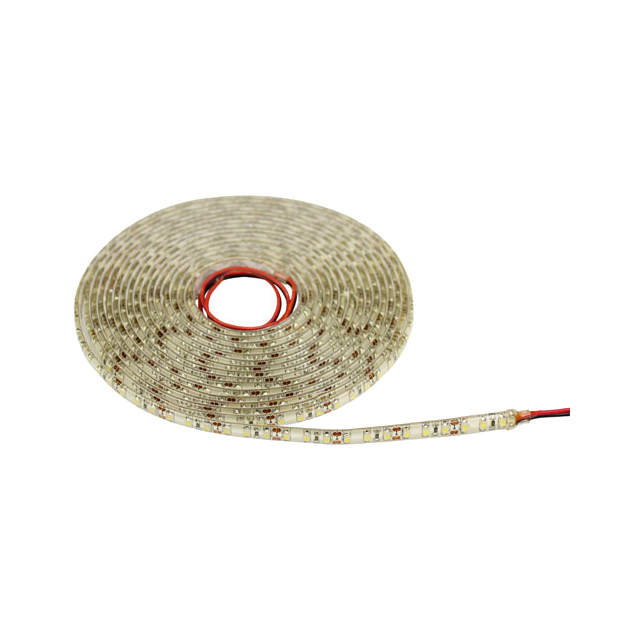

LED STRIP PURP. 16.4 FEET

Deep-Dive with AI

Search across all available documentation for this part.

69-36PU-WR

Active

NTE Electronics, Inc

LED STRIP PURP. 16.4 FEET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	69-36PU-WR

Color	Purple
Configuration	Linear Light Strip, Flexible
Features	IP65
Height [z]	2.5 mm
Lens Type	Flat
Size / Dimension [x]	5000 mm
Size / Dimension [y]	8 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	393 nm
Wavelength [Max]	400 nm
Wavelength [Min]	385 nm

69-36 Series

Part	Color	Configuration	Lens Type	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Forward (Vf) (Typ)	Features	Viewing Angle	Wavelength [Max]	Wavelength [Min]	Wavelength	CCT (K) [Min]	CCT (K) [Max]
NTE Electronics, Inc 69-36PU-WP	Purple	Flexible Linear Light Strip	Flat	4 mm	5000 mm	10.25 mm	LED Module	12 V	IP68	120 °	400 nm	385 nm	393 nm
NTE Electronics, Inc 69-36PU	Purple	Flexible Linear Light Strip	Flat	2.2 mm	5000 mm	8 mm	LED Module	12 V	IP20	120 °	400 nm	385 nm	393 nm
NTE Electronics, Inc 69-36G-02	Green	Flexible Linear Light Strip	Flat	2.2 mm	500 mm	8 mm	LED Module	12 V	IP20 With Connector	120 °	525 nm	510 nm	518 nm
NTE Electronics, Inc 69-36W	White	Flexible Linear Light Strip	Flat	2.2 mm	5000 mm	8 mm	LED Module	12 V	IP20	120 °				6000 K	7000 K
NTE Electronics, Inc 69-36WW-WR-02	Warm White	Flexible Linear Light Strip	Flat	2.5 mm	500 mm	8 mm	LED Module	12 V	IP65 With Connector	120 °				3000 K	3500 K
NTE Electronics, Inc 69-36W-02	White	Flexible Linear Light Strip	Flat	2.2 mm	500 mm	8 mm	LED Module	12 V	IP20 With Connector	120 °				6000 K	7000 K
NTE Electronics, Inc 69-36WW	Warm White	Flexible Linear Light Strip	Flat	2.2 mm	5000 mm	8 mm	LED Module	12 V	IP20	120 °				3000 K	3500 K
NTE Electronics, Inc 69-36WW-02	Warm White	Flexible Linear Light Strip	Flat	2.2 mm	500 mm	8 mm	LED Module	12 V	IP20 With Connector	120 °				3000 K	3500 K
NTE Electronics, Inc 69-36PU-WR	Purple	Flexible Linear Light Strip	Flat	2.5 mm	5000 mm	8 mm	LED Module	12 V	IP65	120 °	400 nm	385 nm	393 nm
NTE Electronics, Inc 69-36R-02	Red	Flexible Linear Light Strip	Flat	2.2 mm	500 mm	8 mm	LED Module	12 V	IP20 With Connector	120 °	630 nm	620 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

69-36 Series

LED Lighting COBs Engines Modules LED Module - Purple Linear Light Strip, Flexible
