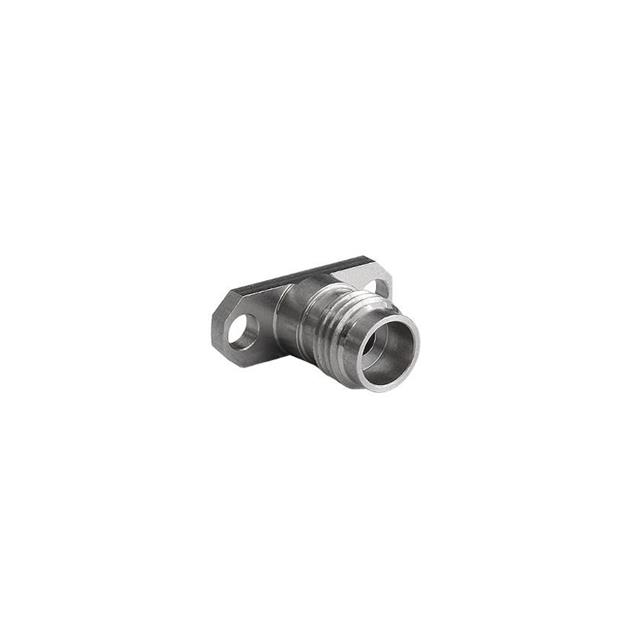

RFSSMAA2JCCAFEC

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, SSMA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFSSMAA2JCCAFEC

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, SSMA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFSSMAA2JCCAFEC

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Style	SSMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

RFSSMA Series

Part	Connector Style	Body Material	Dielectric Material	Center Contact Material	Frequency - Max [Max]	Contact Termination	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Number of Ports	Mating Cycles	Housing Color	Connector Type	Voltage Rating	Impedance	Mounting Type	Features
BULGIN LIMITED RFSSMAA2JEGE	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	350 V	50 Ohms
BULGIN LIMITED RFSSMAA4JAAD	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	335 V	50 Ohms
BULGIN LIMITED RFSSMAA2JEGB	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	350 V	50 Ohms
BULGIN LIMITED RFSSMAA2JCCAFEC	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Solder	Flange	-65 ░C	165 °C	Solder	1	500	Silver	Female Socket Jack	335 V	50 Ohms	Panel Mount Through Hole	Extended Insulation
BULGIN LIMITED RFSSMAA4JCCD	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	335 V	50 Ohms
BULGIN LIMITED RFSSMAA2JEGC	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	350 V	50 Ohms
BULGIN LIMITED RFSSMAA4JAAA	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	335 V	50 Ohms
BULGIN LIMITED RFSSMAA2JCEB	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	350 V	50 Ohms
BULGIN LIMITED RFSSMAA4JCCE	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	335 V	50 Ohms
BULGIN LIMITED RFSSMAA2JEGD	SSMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	40 GHz	Compression	Flange	-65 ░C	165 °C	Screw	1	500	Silver	Female Socket Jack	350 V	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.84
		10	$ 56.94

Description

General part information

RFSSMA Series

SSMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
