SKHHLWA010

Active

Alps Alpine

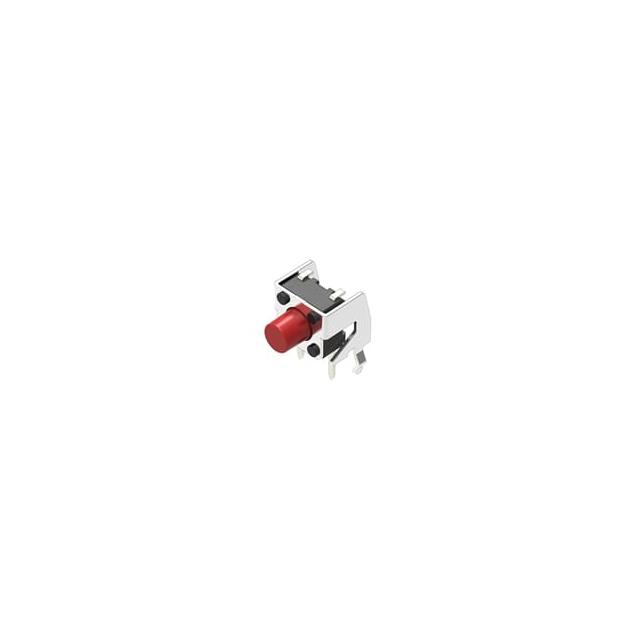

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SKHHLWA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKHHLWA010	SKHHL Series

Actuator Length, Right Angle	-	3.85 - 8.35 mm
Actuator Length, Right Angle [x]	5.85 mm	5.85 mm
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	200000 Cycles	200000 - 1000000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Force	260 gf	100 - 260 gf
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.5 mm	7.5 mm
Outline [y]	6.55 mm	6.55 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

SKHHL Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Type	Actuator Orientation	Illumination	Switch Travel	Circuit	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length, Right Angle [x]	Contact Rating @ Voltage	Mounting Type	Switch Function	Termination Style	Outline [x]	Outline [y]	Operating Force	Actuator Length, Right Angle
Alps Alpine SKHHLUA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	1000000 Cycles	90 °C	-40 °C	5.85 mm	0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm	100 gf
Alps Alpine SKHHLMA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	1000000 Cycles	90 °C	-40 °C		0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm	100 gf	3.85 mm
Alps Alpine SKHHLVA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	500000 Cycles	90 °C	-40 °C	5.85 mm	0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm
Alps Alpine SKHHLRA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	500000 Cycles	90 °C	-40 °C		0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm		8.35 mm
Alps Alpine SKHHLNA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	500000 Cycles	90 °C	-40 °C		0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm		3.85 mm
Alps Alpine SKHHLQA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	1000000 Cycles	90 °C	-40 °C		0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm	100 gf	8.35 mm
Alps Alpine SKHHLWA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	200000 Cycles	90 °C	-40 °C	5.85 mm	0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm	260 gf
Alps Alpine SKHHLPA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	200000 Cycles	90 °C	-40 °C		0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm	260 gf	3.85 mm
Alps Alpine SKHHLSA010	Standard	Side Actuated	Non-Illuminated	0.25 mm	SPST-NO	200000 Cycles	90 °C	-40 °C		0.05 A, 12 VDC	Through Hole, Right Angle	Off-Mom	PC Pin	7.5 mm	6.55 mm	260 gf	8.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.51
		10	$ 0.49
		25	$ 0.47
		100	$ 0.41
		250	$ 0.37
		500	$ 0.34
		1000	$ 0.31
		3000	$ 0.29
		5000	$ 0.27

Description

General part information

SKHHL Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
