0640070100

Active

Molex

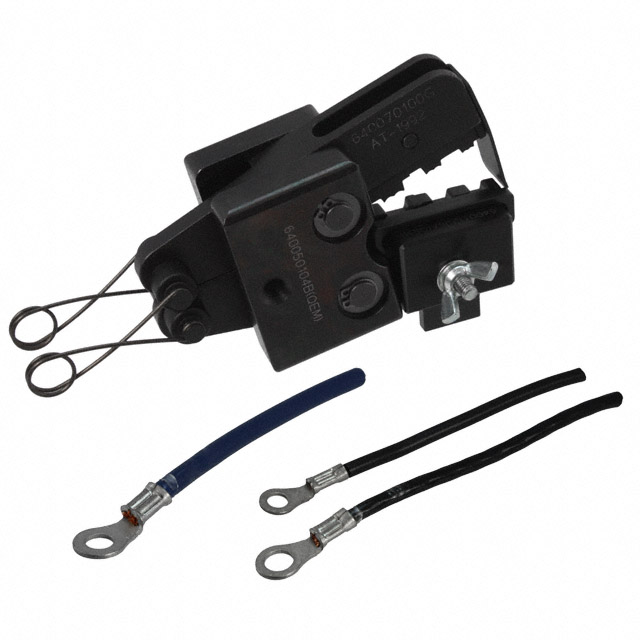

AT 200 PNEUMATIC HAND TOOL CRIMP HEAD

Search across all available documentation for this part.

Active

Molex

AT 200 PNEUMATIC HAND TOOL CRIMP HEAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0640070100	064007 Series

	-	-
For Use With/Related Products	Splices and Terminals	Terminals, Terminals, 24-26 AWG, Quick Connects Terminals, 24-26 AWG, Splices and Terminals, Quick Connects Terminals, Quick Connects Terminals, 12-22 AWG, Terminals, 12-22 AWG
For Use With/Related Products	-	6 - 8 AWG
For Use With/Related Products [Max]	22 AWG	14 - 26 AWG
For Use With/Related Products [Min]	10 AWG	10 - 24 AWG
Tool Type	Crimp Head, Pneumatic	Crimp Head, Pneumatic

Extraction, Removal & Insertion Tools INSERTION TOOL SL SERIES

Part	Tool Type	For Use With/Related Products	For Use With/Related Products [Min]	For Use With/Related Products [Max]	For Use With/Related Products
Molex 0640070800	Crimp Head, Pneumatic	Terminals	14 AWG	16 AWG
Molex 0640070400	Crimp Head, Pneumatic	Quick Connects Terminals, 24-26 AWG, Terminals, 24-26 AWG
Molex 0640070500	Crimp Head, Pneumatic	Terminals	12 AWG	14 AWG
Molex 0640074400	Crimp Head, Pneumatic	Splices and Terminals			8 AWG
Molex 0640074300	Crimp Head, Pneumatic	Splices and Terminals			6 AWG
Molex 0640077100	Crimp Head, Pneumatic	Quick Connects Terminals	24 AWG	26 AWG
Molex 0640070100	Crimp Head, Pneumatic	Splices and Terminals	10 AWG	22 AWG
Molex 0640071100
Molex 0640071200	Crimp Head, Pneumatic	Quick Connects Terminals, 12-22 AWG, Terminals, 12-22 AWG
Molex 0640071175

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
