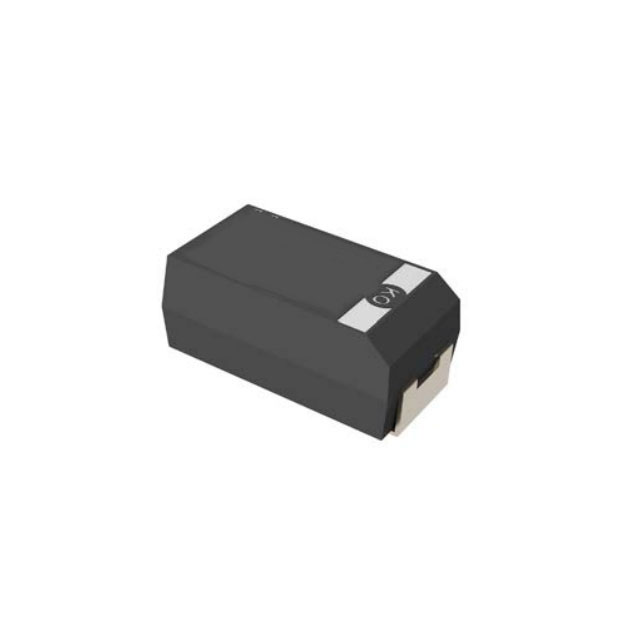

T520A227M2R5ATE035

Active

KEMET

CAP TANT POLY 220UF 2.5V 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T520A227M2R5ATE035 Spec

T520A227M2R5ATE035

Active

KEMET

CAP TANT POLY 220UF 2.5V 1206

Deep-Dive with AI

DocumentsDatasheet T520A227M2R5ATE035 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T520A227M2R5ATE035

Capacitance	220 µF
ESR (Equivalent Series Resistance)	35 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	A
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V

T520A Series

Part	Manufacturer Size Code	Type	Package / Case	Voltage - Rated	Mounting Type	ESR (Equivalent Series Resistance)	Tolerance	Lifetime @ Temp.	Capacitance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KEMET T520A107M004ATE150	A	Molded	1206 (3216 Metric)	4 V	Surface Mount	150 mOhm	20 %	2000 Hrs	100 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A156M010AHE080
KEMET T520A476M006ATE150	A	Molded	1206 (3216 Metric)	6.3 V	Surface Mount	150 mOhm	20 %	2000 Hrs	47 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A686M006ATE150	A	Molded	1206 (3216 Metric)	6.3 V	Surface Mount	150 mOhm	20 %	2000 Hrs	68 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A476M004ATE080	A	Molded	1206 (3216 Metric)	4 V	Surface Mount	80 mOhm	20 %	2000 Hrs	47 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A107M006ATE025	A	Molded	1206 (3216 Metric)	6.3 V	Surface Mount	25 mOhm	20 %	2000 Hrs	100 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A686M2R5ATE070	A	Molded	1206 (3216 Metric)	2.5 V	Surface Mount	70 mOhm	20 %	2000 Hrs	68 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A336M006ATE070	A	Molded	1206 (3216 Metric)	6.3 V	Surface Mount	70 mOhm	20 %	2000 Hrs	33 ÁF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A227M2R5ATE035	A	Molded	1206 (3216 Metric)	2.5 V	Surface Mount	35 mOhm	20 %	2000 Hrs	220 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm
KEMET T520A226M010ANE080	A	Molded	1206 (3216 Metric)	10 V	Surface Mount	80 mOhm	20 %	2000 Hrs	22 µF	General Purpose	105 ░C	-55 °C	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.21
		10	$ 0.91
		50	$ 0.83
		100	$ 0.68
		500	$ 0.54
		1000	$ 0.48
	Digi-Reel®	1	$ 1.21
		10	$ 0.91
		50	$ 0.83
		100	$ 0.68
		500	$ 0.54
		1000	$ 0.48
	Tape & Reel (TR)	2000	$ 0.45
		4000	$ 0.43
		10000	$ 0.41
		14000	$ 0.41

Description

General part information

T520A Series

220 µF Molded Tantalum Polymer Capacitor 2.5 V 1206 (3216 Metric) 35mOhm @ 100kHz
