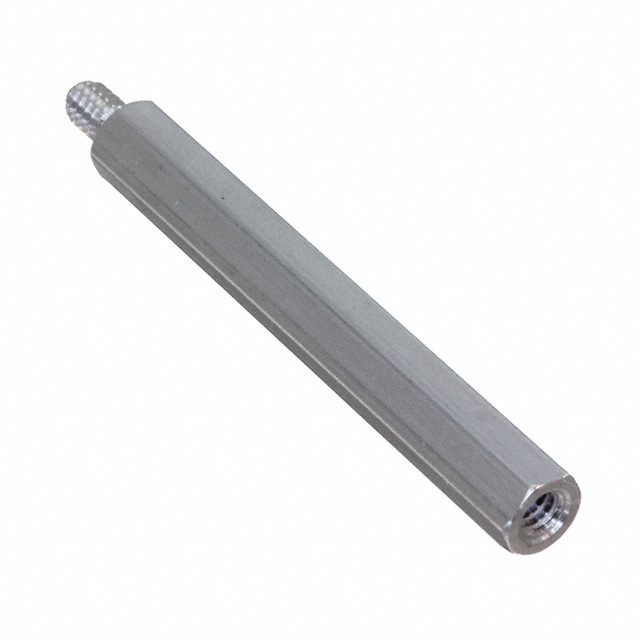

4521-440-AL
ActiveRAF Electronic Hardware
3/16 HEX X 1-1/2 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4521-440-AL
ActiveRAF Electronic Hardware
3/16 HEX X 1-1/2 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4521-440-AL |
|---|---|
| Between Board Height | 1.5 in |
| Between Board Height | 38.1 mm |
| Diameter - Outside [custom] | 0.1875 in |
| Diameter - Outside [diameter] | 0.188 in, 4.78 mm |
| Gender | Male, Female |
| Length - Overall [x] | 1.688 in |
| Length - Overall [x] | 42.86 mm |
| Material | Aluminum |
| Screw, Thread Size | #4-40 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
4521-440 Series
| Part | Type | Screw, Thread Size | Material | Length - Overall [x] | Length - Overall [x] | Threaded/Unthreaded | Gender | Diameter - Outside [diameter] | Diameter - Outside [custom] | Between Board Height | Between Board Height | Diameter - Outside [diameter] | Length - Overall | Length - Overall | Length - Overall | Color | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RAF Electronic Hardware | Hex Standoff | #4-40 | Stainless Steel | 1.688 in | 42.86 mm | Threaded | Female Male | 0.188 in 4.78 mm | 0.1875 in | 1.5 in | 38.1 mm | ||||||
RAF Electronic Hardware | Hex Standoff | #4-40 | Brass | 1.688 in | 42.86 mm | Threaded | Female Male | 0.188 in 4.78 mm | 0.1875 in | 1.5 in | 38.1 mm | ||||||
RAF Electronic Hardware | Hex Standoff | #4-40 | Threaded | Female Male | 4.76 mm | 1.5 in | 38.1 mm | 0.188 " | 44.45 mm | 1.75 in | Clear | Chromate Zinc | |||||
RAF Electronic Hardware | Hex Standoff | #4-40 | Aluminum | 1.688 in | 42.86 mm | Threaded | Female Male | 0.188 in 4.78 mm | 0.1875 in | 1.5 in | 38.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.06 | |
| 5 | $ 1.95 | |||
| 10 | $ 1.90 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.80 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.49 | |||
Description
General part information
4521-440 Series
Hex Standoff Threaded #4-40 Aluminum 1.500" (38.10mm)
Documents
Technical documentation and resources
