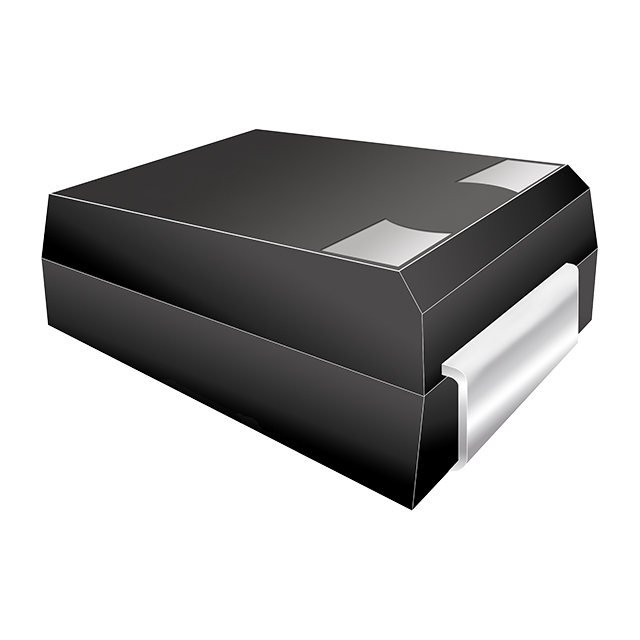

T522V227M006ATE040

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, KO-CAPR, T522 SERIES, 220 F, 20%, 6.3 V, 2917 [7343-19 METRIC] ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, KO-CAPR, T522 SERIES, 220 F, 20%, 6.3 V, 2917 [7343-19 METRIC] ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T522V227M006ATE040

Capacitance	220 µF
ESR (Equivalent Series Resistance)	40 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	1.9 mm
Height - Seated (Max) [Max] [z]	0.075 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	V
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Type	Features	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Mounting Type	Voltage - Rated	Tolerance
KEMET T522V227M006ATE025	Molded	General Purpose	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	V	1.9 mm	0.075 in	25 mOhm	220 µF	105 ░C	-55 °C	2000 Hrs	Surface Mount	6.3 V	20 %
KEMET T522V227M006ATE040	Molded	General Purpose	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	V	1.9 mm	0.075 in	40 mOhm	220 µF	105 ░C	-55 °C	2000 Hrs	Surface Mount	6.3 V	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.60
	Digi-Reel®	1	$ 4.14
	Tape & Reel (TR)	1000	$ 1.57
Newark	Each (Supplied on Cut Tape)	1	$ 2.00

General part information

220 µF Molded Tantalum Polymer Capacitor 6.3 V 2917 (7343 Metric) 40mOhm @ 100kHz
