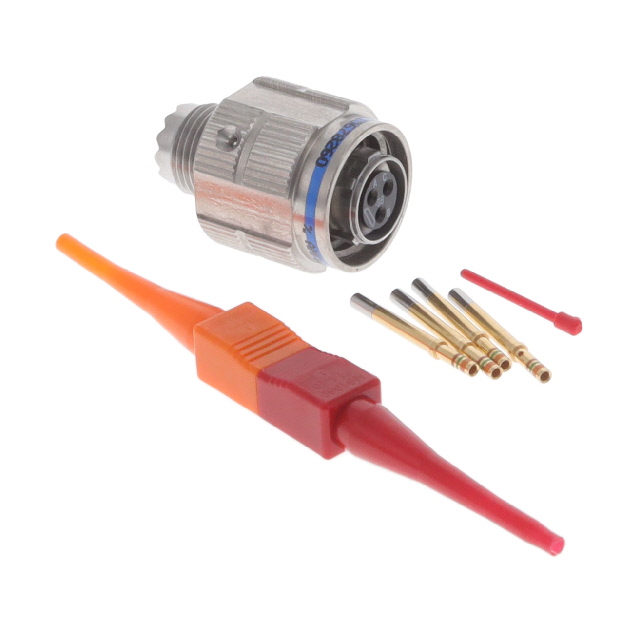

D38999/26KA98SB

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26KA98SB

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26KA98SB

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Features	Coupling Nut, Firewall Usage
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	B
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Material	Stainless Steel
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

D38999/26KA Series

Part	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Qualification	Grade	Shell Material	Connector Type	Shielding	Mounting Type	Contact Shape	Type	Features	Orientation	Shell Size, MIL	Shell Finish	Contact Size	Contact Type	Note	Ingress Protection	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Applications	Primary Material	Color	Number of Positions	Termination	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol Aerospace Operations D38999/26KA98SNLC	98	9	MIL-DTL-38999 Series III	Military	Stainless Steel	Plug Housing	Shielded	Free Hanging (In-Line)	Circular	For Female Sockets	Coupling Nut Firewall Usage Self Locking	N	A	Passivated	20	Crimp	Contacts Not Included	Environment Resistant	Silver	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26KA98PNLC	98	9	MIL-DTL-38999 Series III	Military	Stainless Steel	Plug Housing	Shielded	Free Hanging (In-Line)	Circular	For Male Pins	Coupling Nut Firewall Usage Self Locking	N	A	Passivated	20	Crimp	Contacts Not Included	Environment Resistant	Silver	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26KA35SN	35	9	MIL-DTL-38999 Series III	Military	Stainless Steel	Female Sockets Plug	Shielded	Free Hanging (In-Line)			Coupling Nut Firewall Usage	N	A					Environment Resistant		-65 ░C	200 °C	5 A	Aerospace Aviation Marine Military	Metal	Silver	6	Crimp	Gold	Copper Alloy	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26KA98SB	98	9	MIL-DTL-38999 Series III	Military	Stainless Steel	Female Sockets Plug	Shielded	Free Hanging (In-Line)			Coupling Nut Firewall Usage	B	A					Environment Resistant		-65 ░C	200 °C	7.5 A	Aerospace Aviation Marine Military	Metal	Silver		Crimp	Gold	Copper Alloy	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26KA35JN	35	9	MIL-DTL-38999 Series III	Military	Stainless Steel	Female Sockets Plug	Shielded	Free Hanging (In-Line)			Coupling Nut Firewall Usage	N	A	Passivated				Environment Resistant		-65 ░C	200 °C		Aerospace Aviation Military	Metal		6	Crimp	Gold	Copper Alloy	2.54 çm	100 çin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 151.00
		10	$ 136.38

Description

General part information

D38999/26KA Series

3 Position Circular Connector Plug, Female Sockets Crimp
