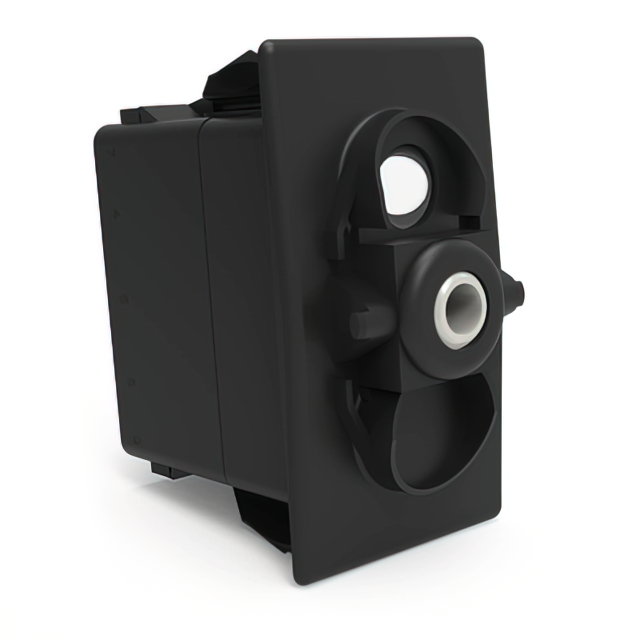

SWITCH ROCKER DPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	VLD2A60B-00000-000	VLD2A60B Series

Actuator Marking	Varies by Cap	No Marking, Varies by Cap
Actuator Type	Actuator Arm, Cap Required - Illuminated	Convex (Reverse V) - Illuminated, Actuator Arm, Cap Required - Illuminated
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	Incandescent	White, Incandescent
Illumination Voltage (Nominal)	12 VAC/DC	12 VAC/DC
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER DPDT 20A 12V

Part	Color - Actuator/Cap	Actuator Type	Voltage Rating - DC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Actuator Marking	Switch Function	Termination Style	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Illumination Type, Color	Circuit	Mechanical Life	Illumination Voltage (Nominal)
Carling Technologies VLD2A60B-A9C00-000	Black	Convex (Reverse V) - Illuminated	12 V	100000 Cycles	85 °C	-40 °C	Panel Mount, Snap-In	20 A	No Marking	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)	CSA, UL, VDE	21.08 mm	36.83 mm	IP66/IP68	Incandescent, White	DPDT	100000 Cycles	12 VAC/DC
