EV28-5.0-02-1M1

Active

TE Connectivity Raychem Cable Protection

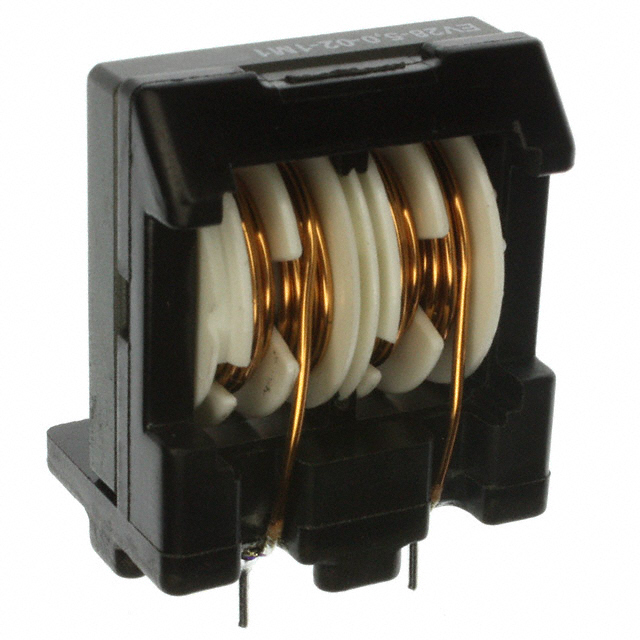

COMMON MODE CHOKES DUAL 1100UH 10KHZ 5A 0.027OHM DCR THRU-HOLE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

COMMON MODE CHOKES DUAL 1100UH 10KHZ 5A 0.027OHM DCR THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	EV28-5.0-02-1M1

Current Rating (Max) [Max]	5 A
DC Resistance (DCR) (Max)	27 mOhm
Filter Type	Power Line
Height (Max) [Max]	35.7 mm
Height (Max) [Max]	1.406 in
Inductance @ Frequency	1.1 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	29.2 mm
Size / Dimension [x]	1.15 "
Size / Dimension [y]	0.827 in
Size / Dimension [y]	21 mm
Voltage Rating - AC	250 V

Part	Inductance @ Frequency	DC Resistance (DCR) (Max)	Filter Type	Height (Max) [Max]	Height (Max) [Max]	Number of Lines	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [custom]	Package / Case	Package / Case	Current Rating (Max) [Max]	Mounting Type	Voltage Rating - AC
TE Connectivity Raychem Cable Protection EV28-5.0-02-1M1	1.1 mH	27 mOhm	Power Line	35.7 mm	1.406 in	2	0.827 in	21 mm	29.2 mm	1.15 "	-25 °C 100 °C	4 Lead	Vertical	5 A	Through Hole	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.1 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 5A DCR 27mOhm (Typ)
