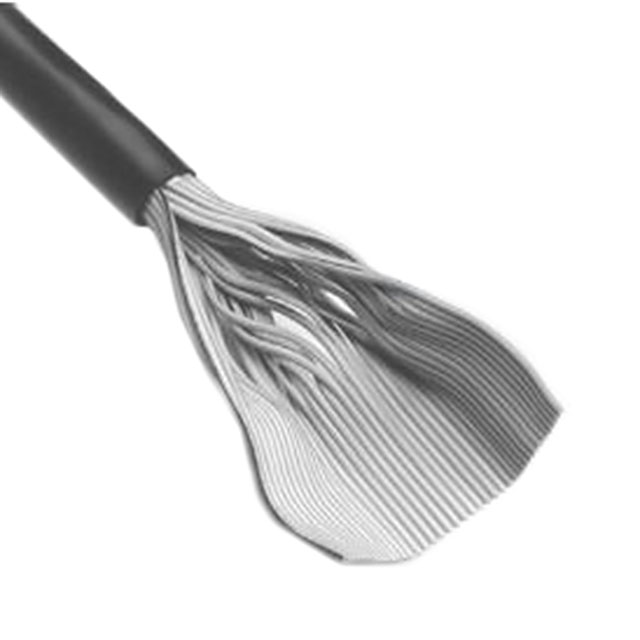

3896/80SF 275

Active

3M (TC)

CBL RIBN 80COND 0.025 BLACK 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

3896/80SF 275

Active

3M (TC)

CBL RIBN 80COND 0.025 BLACK 1'

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3896/80SF 275

Cable Type	Round Jacket, Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1 ft, 25 ft
Length	304.8 mm, 7.62 m
Number of Conductors	80
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 20596
Shielding	Unshielded
Voltage	30 V
Wire Gauge	30 AWG

3896 Series

Part	Conductor Material	Jacket (Insulation) Material	Jacket Color	Pitch [x]	Pitch [x]	Ribbon Width	Ribbon Width	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Voltage	First Conductor Mark	Length	Length	Insulation Resistance	Cable Type	Ratings	Features	Shielding	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [x]
3M (TC) 3896/30	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in	18.42 mm	0.725 "	-20 C	105 ░C	30	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/68SO	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in			-20 C	105 ░C	68	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/52	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in	32.39 mm	1.275 in	-20 C	105 ░C	52	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/100SF	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in			-20 C	105 ░C	100	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Splice Free Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/26	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in	15.88 mm	0.625 in	-20 C	105 ░C	26	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/32	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in	19.69 mm		-20 C	105 ░C	32	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG	0.775 in
3M (TC) 3896/100SO	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in			-20 C	105 ░C	100	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/26SF	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in	15.88 mm	0.625 in	-20 C	105 ░C	26	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Splice Free Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/80SF 275	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in			-20 C	105 ░C	80	30 V	Red	7.62 m 304.8 mm	1 ft 25 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG
3M (TC) 3896/68	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	0.64 mm	0.025 in			-20 C	105 ░C	68	30 V	Red	83.82 m	275 ft	10 GOhm	Flat Cable Round Jacket	UL Style 20596	Zippable	Unshielded	30 AWG	7	38 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.22
		1	$ 50.29
		1	$ 221.86
		2	$ 10.19
		3	$ 9.62
		5	$ 8.95
		5	$ 176.30
		5	$ 39.99
		7	$ 8.54
		10	$ 36.28
		10	$ 8.11
		10	$ 160.28
		25	$ 7.12
		25	$ 31.89
		25	$ 140.87
		50	$ 6.46
		50	$ 28.86
		50	$ 127.38
		100	$ 5.85
		100	$ 26.16

Description

General part information

3896 Series

Flat Ribbon Cable Black 80 Conductors 0.025" (0.64mm) Flat Cable, Round Jacket 1.00' (304.80mm)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet
