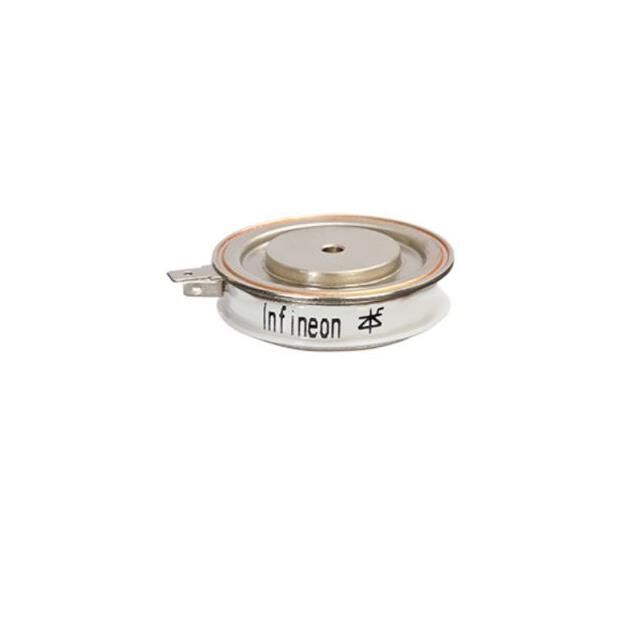

T390N16TOFXPSA1

Active

Infineon Technologies

1600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 42 MM DIA AND A HEIGHT OF 14 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

T390N16TOFXPSA1

Active

Infineon Technologies

1600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 42 MM DIA AND A HEIGHT OF 14 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T390N16TOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	4900 A
Current - On State (It (AV)) (Max) [Max]	381 A
Current - On State (It (RMS)) (Max) [Max]	600 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-200AA
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.6 kV

T390N16 Series

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Mounting Type	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Number of SCRs, Diodes	Operating Temperature [Max]	Operating Temperature [Min]	Structure	Current - On State (It (AV)) (Max) [Max]
Infineon Technologies T390N16TOFXPSA1	2 V	1.6 kV	Chassis Mount	TO-200AA	200 mA	4900 A	150 mA	600 A	1 SCR	125 °C	-40 °C	Single	381 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 96.34
		18	$ 79.06
Newark	Each	1	$ 115.12

Description

General part information

T390N16 Series

The T390NPhase Control Thyristor discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 41mm and a height of 14mm.
