4603-1032-S-12
ActiveRAF Electronic Hardware
5/16 HEX X 2-1/2 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4603-1032-S-12
ActiveRAF Electronic Hardware
5/16 HEX X 2-1/2 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4603-1032-S-12 |
|---|---|
| Between Board Height | 63.5 mm |
| Between Board Height | 2.5 in |
| Color | Clear |
| Diameter - Outside [diameter] | 0.313 in |
| Diameter - Outside [diameter] | 7.94 mm |
| Gender | Male, Female |
| Length - Overall | 73.03 mm |
| Length - Overall | |
| Length - Overall | 2.875 in |
| Plating | Zinc, Chromate |
| Screw, Thread Size | #10-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.06 | |
| 5 | $ 3.45 | |||
| 10 | $ 3.23 | |||
| 25 | $ 2.98 | |||
| 50 | $ 2.82 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.50 | |||
| 500 | $ 2.39 | |||
| 1000 | $ 2.29 | |||
Description
General part information
4603-1032 Series

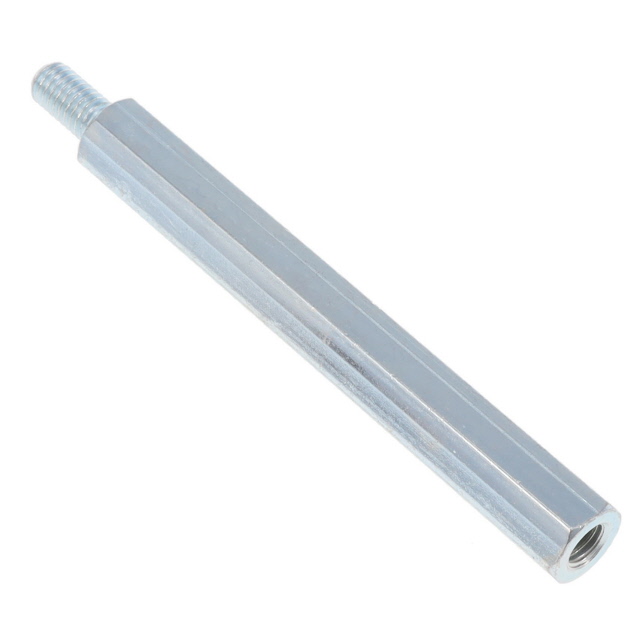

Hex Standoff Threaded #10-32 Steel 2.500" (63.50mm) Clear
Documents
Technical documentation and resources
No documents available
