6EP41343AB002AY0

Active

Siemens

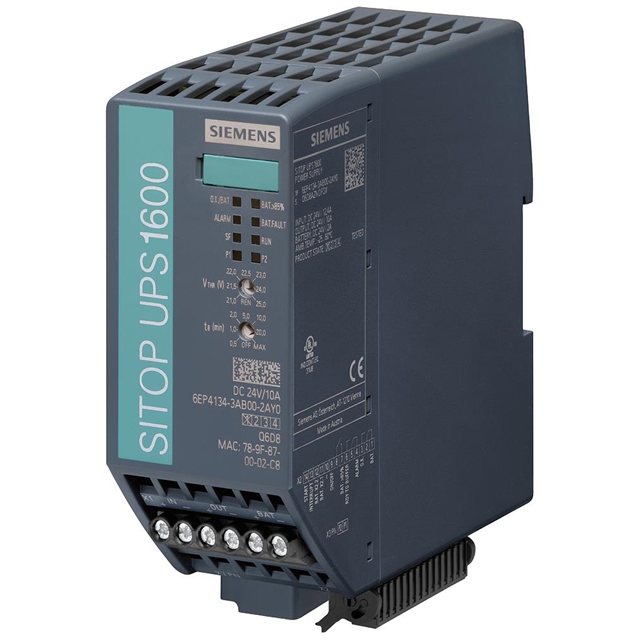

SITOP DC UPS1600 MODULE,24V 10A

Search across all available documentation for this part.

Active

Siemens

SITOP DC UPS1600 MODULE,24V 10A

Technical Specifications

Parameters and characteristics for this part

Specification	6EP41343AB002AY0

AC Outlets	1
Applications	Industrial Control, General Purpose
Approval Agency	cULus, UL, CSA, CE, EAC
Form	Din Rail
Height [z]	5.472 in
Height [z]	139 mm
Power - Rated	240 W
Size / Dimension [x]	4.921 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Voltage - Input [Max]	29 V
Voltage - Input [Min]	21 V
Voltage - Output	24 V

Part	Height [z]	Height [z]	Voltage - Output	Applications	Power - Rated	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	AC Outlets	Form
Siemens 6EP41343AB002AY0	5.472 in	139 mm	24 V	General Purpose Industrial Control	240 W	29 V	21 V	4.921 in	1.969 in	50 mm	125 mm	CE CSA cULus EAC UL	1	Din Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SITOP DC UPS1600 MODULE,24V 10A
