FDG.1B.304.CLAD52

Active

LEMO

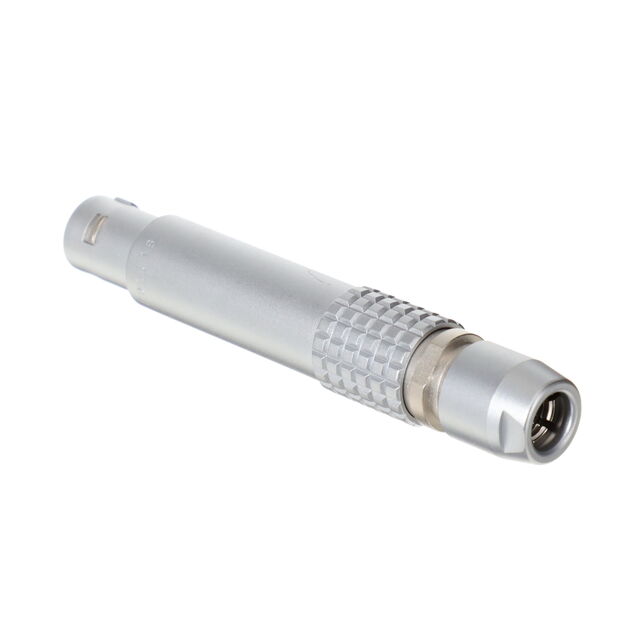

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FDG.1B.304.CLAD52

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 57.19
		10	$ 52.48
		25	$ 50.46
		50	$ 48.78
		100	$ 46.09

Description

General part information

FDG.1B Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FDG.1B.304.CLAD52	FDG.1B Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.122 - 0.165 in
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.205 in
Cable Opening	-	0.244 in
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	3.1 - 4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Insert Shell, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	2 - 10 A
Fastening Type	Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included; Insert Not Included
Number of Positions	4	4 - 14
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	304 - 314
Shielding	Shielded	Shielded
Termination	-	Crimp

FDG.1B Series

CONN INSERT SHELL PLUG INLINE

Part	Orientation	Mounting Type	Shell Finish	Features	Note	Ingress Protection	Connector Type	Fastening Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Material	Primary Material	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Finish - Mating	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Color	Backshell Material, Plating	Cable Opening [diameter]	Termination	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
LEMO FDG.1B.110.CZZ	G	Free Hanging (In-Line)	Chrome	Backshell	Contacts Not Included; Insert Not Included	IP50	Insert Shell	Detent Lock, Push-Pull	Silver	-55 °C	250 °C	Shielded	Brass
LEMO FDG.1B.304.CLAD52	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	304	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	4	UL94 V-0	10 A	Silver	Brass, Chrome
LEMO FDG.1B.307.CYCD42Z	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	307	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass		3.1 mm, 4.2 mm		7	UL94 V-0	7 A	Silver	Brass, Chrome	0.122 in, 0.165 in	Crimp
LEMO FDG.1B.307.CLAD52	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	307	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	7	UL94 V-0	7 A	Silver	Brass, Chrome
LEMO FDG.1B.307.CLAD42Z	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	307	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass		3.1 mm, 4.2 mm		7	UL94 V-0	7 A	Silver	Brass, Chrome	0.122 in, 0.165 in
LEMO FDG.1B.306.CLAD62Z	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	306	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass				6	UL94 V-0	7 A	Silver	Brass, Chrome			6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FDG.1B.310.CLAD72Z	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	310	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass				10	UL94 V-0	2.5 A	Silver	Brass, Chrome							0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FDG.1B.310.CYCD62	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	310	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass				10	UL94 V-0	2.5 A	Silver	Brass, Chrome		Crimp	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FDG.1B.308.CYCD72Z	G	Free Hanging (In-Line)	Chrome	Backshell		IP50	Male Pins, Plug	Push-Pull		-55 °C	250 °C	Shielded	Brass	Metal	308	1 µm	39.4 µin	Polyetheretherketone (PEEK)	Gold	Brass				8	UL94 V-0	5 A	Silver	Brass, Chrome		Crimp					0.244 in, 0.283 in	6.2 mm, 7.2 mm
