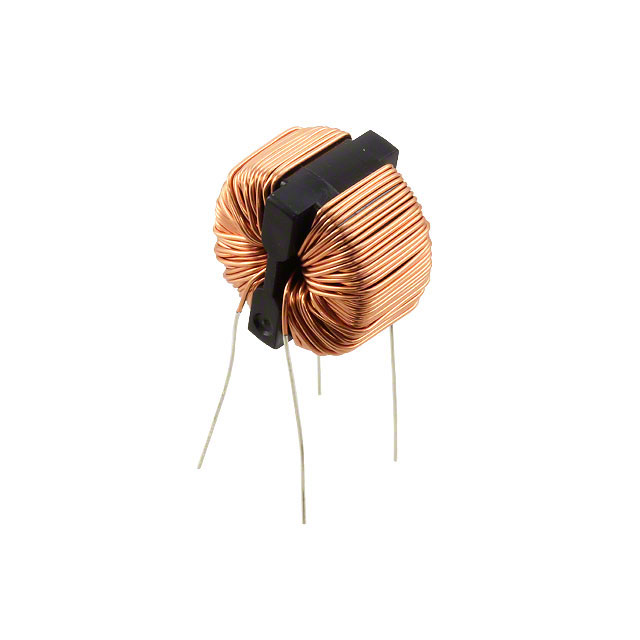

SCF-01-5000 - SCF-01-5000

SCF-01-5000

Active
KEMET

CHOKE, COMMON MODE, 17 MH, 3 A, 250 VAC, RADIAL LEADED, SCR SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0012_SCF.pdfSCF-01-5000+2
SCF-01-5000 - SCF-01-5000

SCF-01-5000

Active
KEMET

CHOKE, COMMON MODE, 17 MH, 3 A, 250 VAC, RADIAL LEADED, SCR SERIES

Deep-Dive with AI

DocumentsKEM_LF0012_SCF.pdfSCF-01-5000+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSCF-01-5000
Current Rating (Max) [Max]1 A
DC Resistance (DCR) (Max) [Max]390 mOhm
Filter TypePower Line
Height (Max) [Max]15 mm
Height (Max) [Max]0.591 in
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
Package / CaseNo Base, Vertical, 4 PC Pin
Size / Dimension [x]0.591 in
Size / Dimension [x]15 mm
Size / Dimension [y]0.472 "
Size / Dimension [y]12 mm
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 5.77
10$ 5.21
25$ 5.00
50$ 4.84
100$ 4.69
300$ 4.46
500$ 4.36
1000$ 4.22
NewarkEach 100$ 4.42
250$ 4.18
500$ 4.07

Description

General part information

SCF-01 Series

50 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 390mOhm
