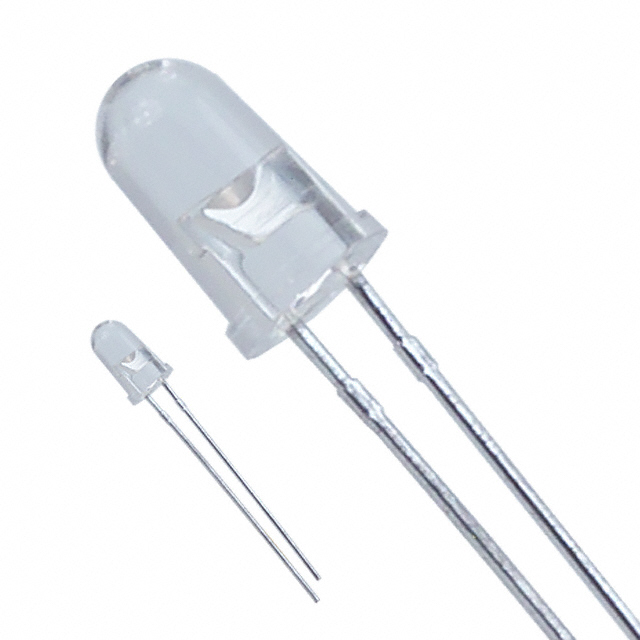

LTL353QRKNN

Active

Diodes Inc

LED RED CLEAR T-1 3/4 T/H

Search across all available documentation for this part.

Active

Diodes Inc

LED RED CLEAR T-1 3/4 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Package / Case	Height (Max) [Max] [z]	Lens Transparency	Configuration	Color	Current - Test	Wavelength - Dominant	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Color	Lens Size	Lens Size	Lens Style	Supplier Device Package	Mounting Type	Viewing Angle
Diodes Inc LTL353UBK	250 mcd	Radial	8.8 mm	Clear	Standard	Blue	20 mA	466 nm	428 nm	3.8 V	Colorless	T-1 3/4	5 mm	Round with Domed Top	T-1 3/4	Through Hole	12 °
Diodes Inc LTL353TGK	6000 mcd	Radial	8.8 mm	Clear	Standard	Green	20 mA		525 nm	3.5 V	Colorless	T-1 3/4	5 mm	Round with Domed Top	T-1 3/4	Through Hole	8 °
Diodes Inc LTL353QRKNN	4200 mcd	Radial	8.8 mm	Clear	Standard	Red	20 mA	631 nm	639 nm	1.9 V	Colorless	T-1 3/4	5 mm	Round with Domed Top	T-1 3/4	Through Hole	12 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.12

General part information

Red 631nm LED Indication - Discrete 1.9V Radial

Technical documentation and resources
