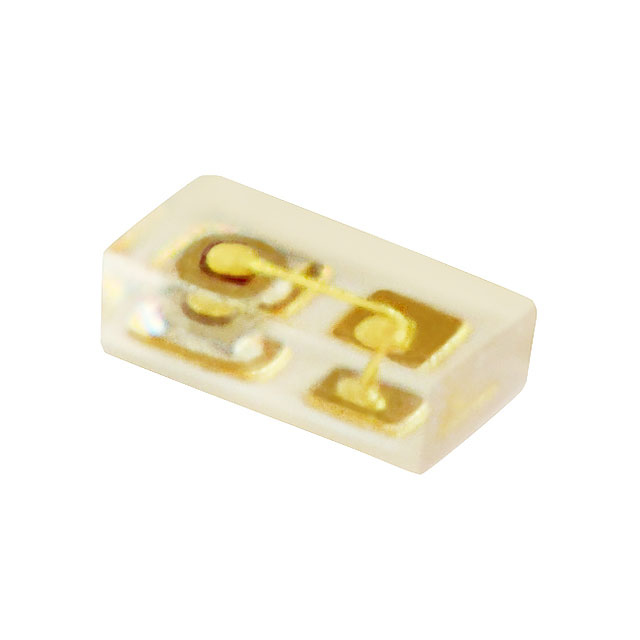

XZBGR155W5MAV
ObsoleteSunLED
LED GREEN CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZBGR155W5MAV
ObsoleteSunLED
LED GREEN CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZBGR155W5MAV |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size [x] | 0.65 mm |
| Lens Size [y] | 0.35 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 79 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.35 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 145 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant [custom] | 527 nm |
| Wavelength - Peak | 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XZBGR155 Series
Green 527nm LED Indication - Discrete 3V 2-SMD, No Lead
