306-042-521-104
ActiveEDAC Inc.

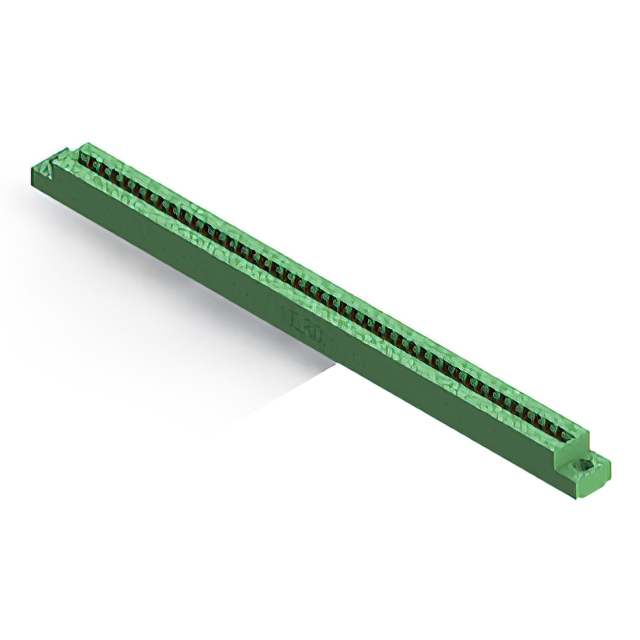

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
306-042-521-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-042-521-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-042 Series
| Part | Number of Positions/Bay/Row [custom] | Termination Rows | Read Out | Gender | Color | Mounting Type | Contact Type | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Card Type | Pitch [x] | Pitch [x] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | |
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder Eyelet(s) | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Card Guides | |||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | |
EDAC Inc. | 42 | 1 | Dual | Female | Green | Panel Mount Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Through Hole | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder | Polyester Thermoplastic | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 42 | 1 | Dual | Female | Green | Free Hanging (In-Line) | Cantilever | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | -40 °C | 105 ░C | 2 | Solder Eyelet(s) | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-042 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
