Q-0D05A00051.5M

Active

Amphenol Custom Cable

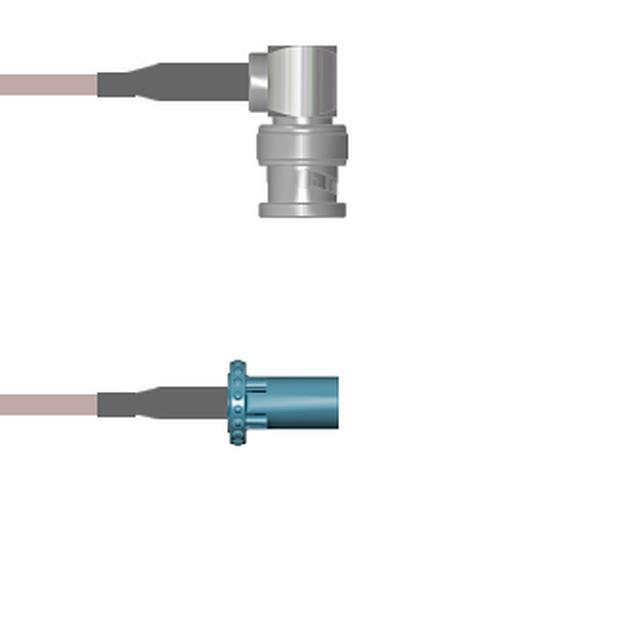

CBL ASSY BNC-FAKRA PLUG-PLG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D05A00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA PLUG-PLG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D05A00051.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0D05A0 Series

Part	Length	Length	Length	2nd Connector	1st Connector	1st Connector Mounting Type	Frequency - Max [Max]	Features	2nd Connector Mounting Type	1st Contact Gender	Style	Cable Type	2nd Contact Gender	Overall Impedance	Color
Amphenol Custom Cable Q-0D05A00051.5M	59.1 in	4.9 ft	1.5 m	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-316	Male	50 Ohms	Copper
Amphenol Custom Cable Q-0D05A0003036i	36 in		91.44 cm	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-174	Male	50 Ohms	Black
Amphenol Custom Cable Q-0D05A0005001M	39.4 in	3.3 ft	1 m	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-316	Male	50 Ohms	Copper
Amphenol Custom Cable Q-0D05A0005048i	48 in	4 ft	1200 mm	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-316	Male	50 Ohms	Copper
Amphenol Custom Cable Q-0D05A0003048i	48 in	4 ft	1200 mm	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-174	Male	50 Ohms	Black
Amphenol Custom Cable Q-0D05A0003009i	9 "		228.6 mm	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-174	Male	50 Ohms	Black
Amphenol Custom Cable Q-0D05A0003006i	6 in		152.4 mm	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-174	Male	50 Ohms	Black
Amphenol Custom Cable Q-0D05A0005084i	84 in	7 ft	2.1 m	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-316	Male	50 Ohms	Copper
Amphenol Custom Cable Q-0D05A0005108i	108 in	9 ft	2.7 m	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-316	Male	50 Ohms	Copper
Amphenol Custom Cable Q-0D05A0003003M	118.1 in	9.8 '	3 m	Fakra Plug	BNC Plug Right Angle	Free Hanging (In-Line)	3 GHz	Shielded	Free Hanging (In-Line)	Male	BNC to Fakra	RG-174	Male	50 Ohms	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.86
		25	$ 65.99
		50	$ 61.12
		100	$ 56.95
		250	$ 53.47

Description

General part information

Q-0D05A0 Series

Cable Assembly Coaxial BNC to Fakra RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
