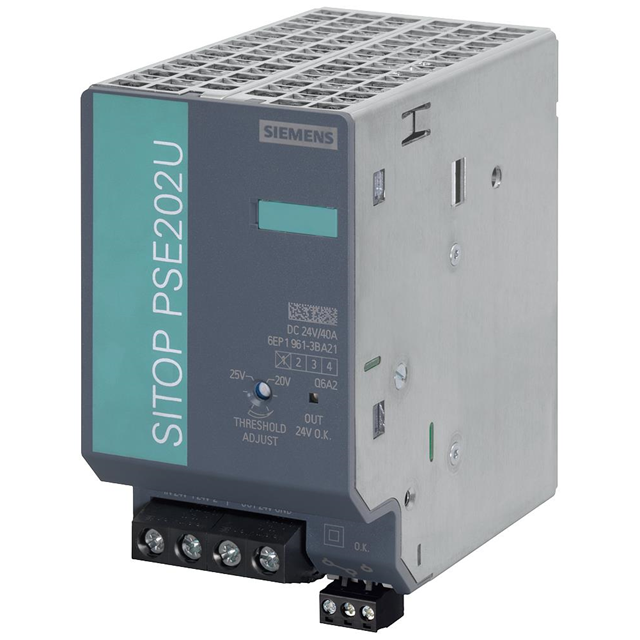

6EP19613BA21

Active

Siemens

DC/DC DIN RAIL SUPPLY 24V

Search across all available documentation for this part.

Active

Siemens

DC/DC DIN RAIL SUPPLY 24V

Technical Specifications

Parameters and characteristics for this part

Specification	6EP19613BA21

Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	cULus, CSA, cUL, UL, CE, cCSAus
Current - Output (Max) [Max]	40 A
DC Voltage - Input (Max) [Max]	28.8 V
DC Voltage - Input (Min) [Min]	24 V
Efficiency	96.6 %
Features	Adjustable Output, IP20
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	30 mm
Size / Dimension [y]	1.18 in
Size / Dimension [z]	3.15 "
Size / Dimension [z]	80 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	Standard Number	DC Voltage - Input (Min) [Min]	Input Type	Voltage - Output 1	Approval Agency	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Number of Outputs	DC Voltage - Input (Max) [Max]	Applications
Siemens 6EP19613BA21	60950-1 UL 508	24 V	DC	24 V	cCSAus CE CSA cUL cULus UL	96.6 %	Adjustable Output IP20	60 °C	-25 °C	30 mm	3.15 "	100 mm	3.94 in	80 mm	1.18 in	40 A	1	28.8 V	Hazardous Locations Industrial ITE (Commercial)
