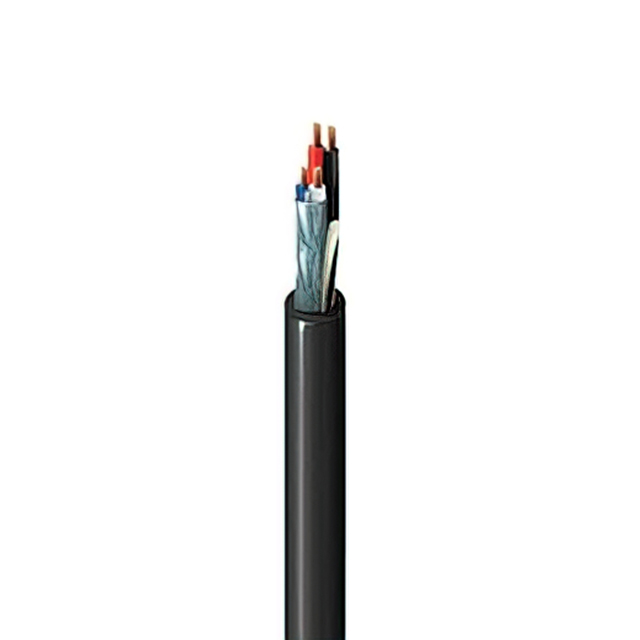

1392P 0101000

Active

Belden Inc.

MULTI-PAIR 4COND 18/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 18/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1392P 0101000

Cable Type	Multi-Pair
Conductor Material	Copper, Bare
Conductor Strand [custom]	19, 7
Conductor Strand [custom]	30
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.205 in
Jacket (Insulation) Diameter [diameter]	5.21 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Automation and Lighting Control
Voltage	300 V
Wire Gauge	22 AWG, 18 AWG

Part	Jacket Color	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Shield Type	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Length	Length	Cable Type	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Number of Conductors	Ratings	Features
Belden Inc. 1392P 0101000	Black	Aluminum	0.015 in	0.381 mm	300 V	Foil	Copper Bare	75 ░C	0 °C	100 %	1000 ft	304.8 m	Multi-Pair	18 AWG 22 AWG	Automation and Lighting Control	0.205 in	5.21 mm	7 19	30	Plenum Poly-Vinyl Chloride (PVC)	4	UL Style CMP	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.96

General part information

4 (2 Pair) Conductor Multi-Pair Cable Black 18 AWG, 22 AWG Foil 1000.0' (304.8m)
