ESW108M050AM7AA

Active

KEMET

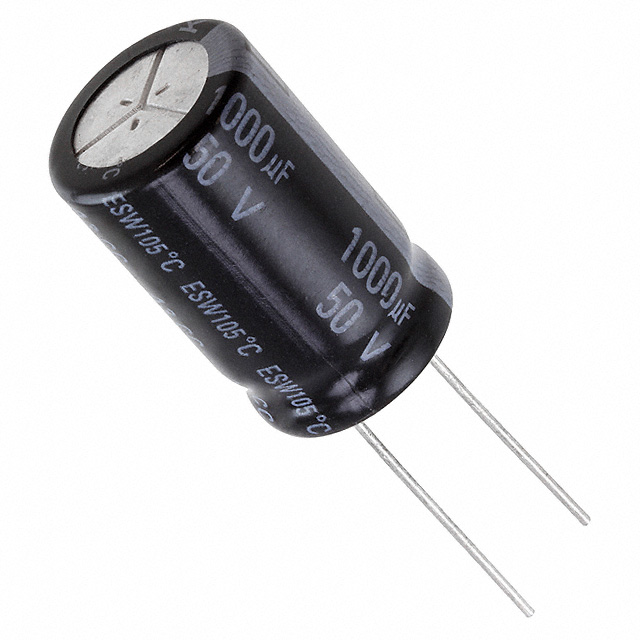

CAP ALUM 1000UF 20% 50V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 20% 50V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ESW108M050AM7AA

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	25 mOhm
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Impedance	34 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	6000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.555 A
Ripple Current @ Low Frequency	1.533 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	50 VDC

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Polarization	Capacitance	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Voltage - Rated	Impedance	Applications	Mounting Type	ESR (Equivalent Series Resistance)
KEMET ESW108M063AM3AA	0.63 in	16 mm	Radial Can	1.074 A	-40 °C	105 ░C	1.79 A	Polar	1000 µF	20 %	7.5 mm	0.295 in	38 mm	1.496 in	6000 Hrs	63 V	36 mOhms	General Purpose	Through Hole	45 mOhm
KEMET ESW108M050AM7AA	0.63 in	16 mm	Radial Can	1.533 A	-40 °C	105 ░C	2.555 A	Polar	1000 µF	20 %	7.5 mm	0.295 in	27 mm	1.063 in	6000 Hrs	50 VDC	34 mOhms	General Purpose	Through Hole	25 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 25mOhm @ 100kHz 6000 Hrs @ 105°C
