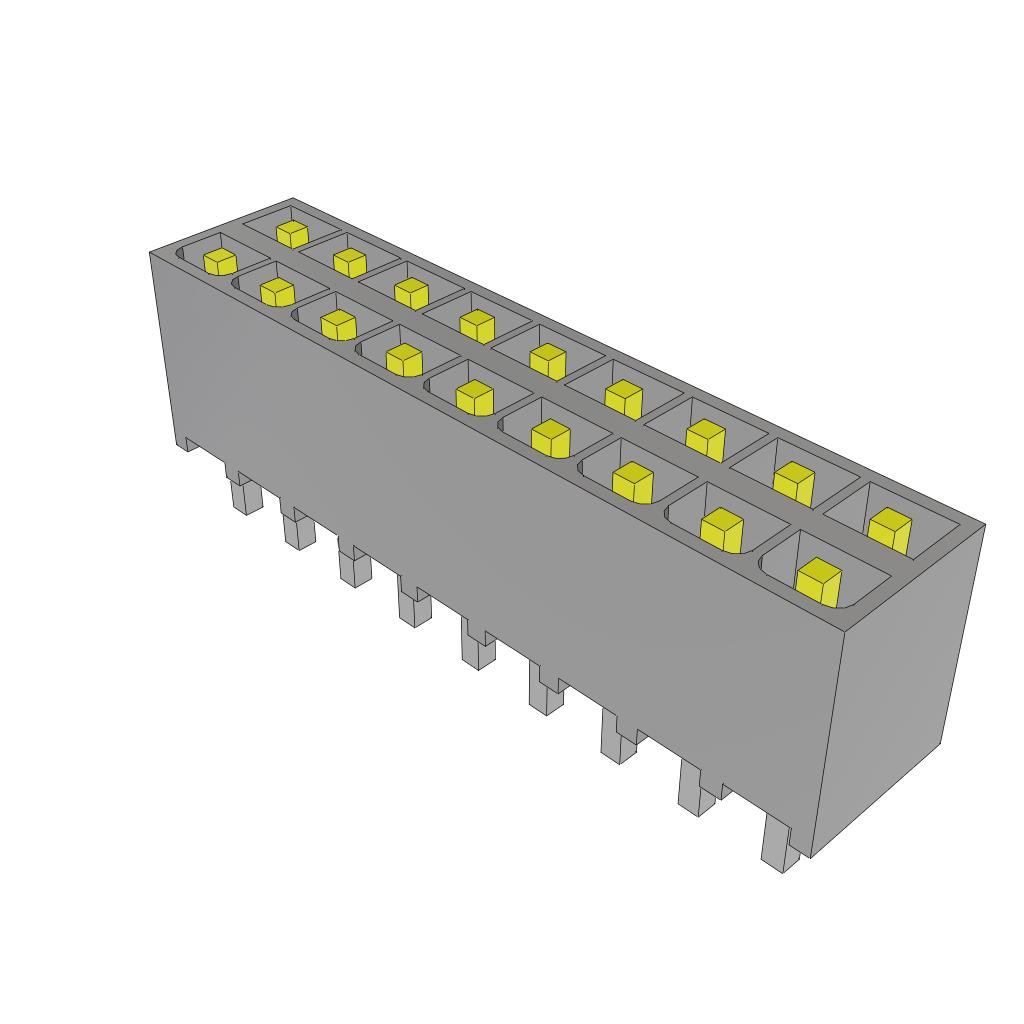

IPT1-109-01-L-D
ActiveSamtec Inc.
CONN HEADER VERT 18POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
IPT1-109-01-L-D
ActiveSamtec Inc.
CONN HEADER VERT 18POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPT1-109-01-L-D |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 3.94 mm |
| Contact Length - Mating | 0.155 in |
| Contact Length - Post | 2.16 mm |
| Contact Length - Post | 0.085 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 8.51 mm |
| Overall Contact Length | 0.335 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Voltage Rating | 775 VAC, 1095 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24 | $ 3.78 | |
Description
General part information
IPT1-109 Series
Connector Header Through Hole 18 position 0.100" (2.54mm)
