PAM8902HZER
ActiveNRND = NOT RECOMMENDED FOR NEW DESIGN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PAM8902HZER |
|---|---|
| Features | Short-Circuit and Thermal Protection |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1-Channel (Mono) |

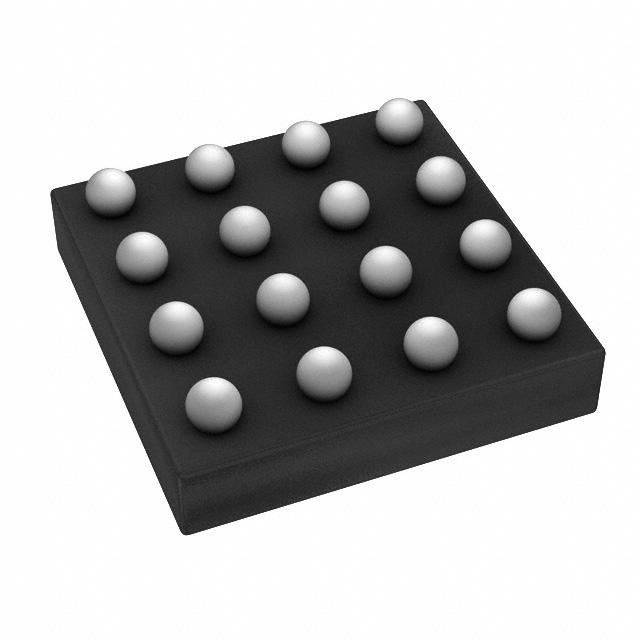

| Supplier Device Package | 16-CSP (1.95x1.95) |
| Type | Class D |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
PAM8902 Series
NRND = Not Recommended for New Design
| Part | Features | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Supplier Device Package | Output Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.7 V | 5.5 V | Surface Mount | 16-CSP (1.95x1.95) | 1-Channel (Mono) | |
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.5 V | 5.5 V | Surface Mount | 16-QFN (4x4) | 1-Channel (Mono) | 16-WQFN Exposed Pad |
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.5 V | 5.5 V | Surface Mount | 16-CSP (1.95x1.95) | 1-Channel (Mono) | |
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.7 V | 5.5 V | Surface Mount | 16-CSP (1.95x1.95) | 1-Channel (Mono) | |
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.7 V | 5.5 V | Surface Mount | 16-QFN (4x4) | 1-Channel (Mono) | 16-VQFN Exposed Pad |
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.5 V | 5.5 V | Surface Mount | 16-CSP (1.95x1.95) | 1-Channel (Mono) | |
Diodes Inc | Short-Circuit and Thermal Protection | 85 °C | -40 °C | Class D | 2.5 V | 5.5 V | Surface Mount | 16-QFN (4x4) | 1-Channel (Mono) | 16-VQFN Exposed Pad |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.49 | |
| 6000 | $ 0.47 | |||
| 15000 | $ 0.45 | |||
Description
General part information
PAM8902 Series
The PAM8902 is a mono, Class-D audio amplifier with integrated boost converter designed for piezo and ceramic speakers.The PAM8902 is capable of driving a ceramic/piezo speaker with 30VPP(10.6Vrms) from a 3.6V power supply.The PAM8902's Boost converter operates at a fixed frequency of 1.5MHz, and provides a 17.5V supply with a minimum number of external components. PAM8902 features an integrated audio low pass filter that rejects high frequency noise thus improving audio fidelity. And three gain modes of 18dB, 22dB and 26dB for ease of use. PAM8902 also provides thermal, short, under- and over-voltage protection. The PAM8902 is available in a 16-ball 1.95mm x 1.95mm CSP package and 16-pin QFN4x4 package.
