MCP3462T-E/NC
ActiveMicrochip Technology
NEWER DEVICE AVAILABLE MCP3462R
Deep-Dive with AI
Search across all available documentation for this part.
MCP3462T-E/NC
ActiveMicrochip Technology
NEWER DEVICE AVAILABLE MCP3462R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP3462T-E/NC | MCP3462 Series |
|---|---|---|
| Architecture | Sigma-Delta | Sigma-Delta |
| Configuration | - | MUX-ADC |
| Data Interface | SPI | SPI |
| Features | Internal Oscillator, Temperature Sensor, PGA | Internal Oscillator, Temperature Sensor, PGA |
| Input Type | Differential, Single Ended | Differential, Single Ended |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | 2 | 2 |
| Number of Bits | 16 bits | 16 bits |
| Number of Inputs | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

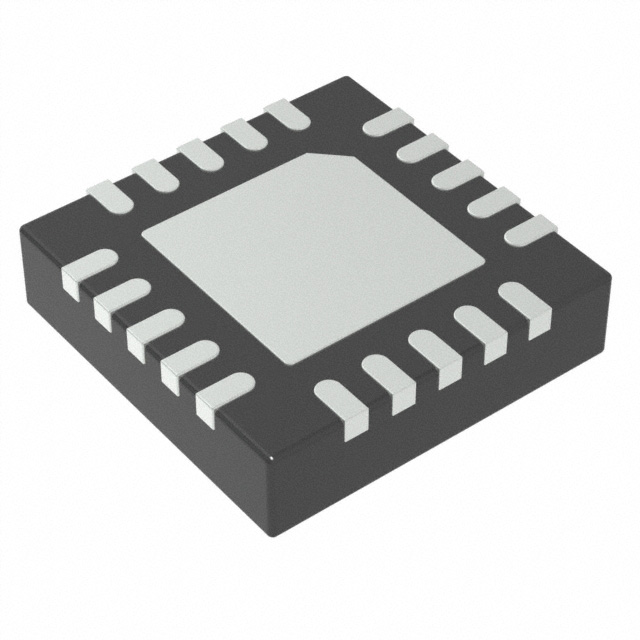

| Package / Case | 20-UFQFN Exposed Pad | 20-TSSOP, 20-UFQFN Exposed Pad |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Ratio - S/H:ADC | - | 0:2 |
| Reference Type | External | Internal, External |
| Sampling Rate (Per Second) | 153.6 k | 153.6 k |
| Supplier Device Package | 20-UQFN (3x3) | 20-TSSOP, 20-UQFN (3x3) |
| Voltage - Supply, Analog [Max] | 3.6 V | 3.6 V |
| Voltage - Supply, Analog [Min] | 2.7 V | 2.7 V |
| Voltage - Supply, Digital | - | 3.7 V |
| Voltage - Supply, Digital | - | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 1 | $ 4.02 | |
| 25 | $ 4.00 | |||
| 100 | $ 3.35 | |||
| Reel | 3000 | $ 3.62 | ||
| 6000 | $ 3.54 | |||
| 12000 | $ 3.46 | |||
| 18000 | $ 3.38 | |||
| 24000 | $ 3.30 | |||
| DigiKey | Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | 1 | $ 4.10 | |
| 25 | $ 3.43 | |||
| 100 | $ 3.12 | |||
| 3000 | $ 3.12 | |||
| Digikey | Cut Tape (CT) | 1 | $ 4.10 | |
| 25 | $ 3.43 | |||
| 100 | $ 3.12 | |||
| Digi-Reel® | 1 | $ 4.10 | ||
| 25 | $ 3.43 | |||
| 100 | $ 3.12 | |||
| Tape & Reel (TR) | 3000 | $ 3.12 | ||
| Future Electronics | N/A | 3000 | $ 3.20 | |
| 3000 | $ 3.20 | |||
| Master Electronics | N/A | 750 | $ 8.14 | |
| 750 | $ 8.14 | |||
| 1500 | $ 4.29 | |||
| 1500 | $ 4.29 | |||
| 2250 | $ 2.95 | |||
| 2250 | $ 2.95 | |||
| 3000 | $ 2.89 | |||
| 3000 | $ 2.89 | |||
| Microchip Direct | T/R | 1 | $ 4.10 | |
| 25 | $ 3.43 | |||
| 100 | $ 3.12 | |||
| 1000 | $ 3.01 | |||
| 5000 | $ 2.98 | |||
| Microchip Technology Inc | N/A | 1 | $ 4.10 | |
| 25 | $ 3.43 | |||
| 100 | $ 3.12 | |||
| 1000 | $ 3.01 | |||
| 5000 | $ 2.98 | |||
| Reel | 1 | $ 4.10 | ||
| 25 | $ 3.43 | |||
| 100 | $ 3.12 | |||
| 1000 | $ 3.01 | |||
| 5000 | $ 2.98 | |||
| Mouser Electronics | N/A | 1 | $ 3.59 | |
| 1 | $ 3.64 | |||
| 10 | $ 3.58 | |||
| 10 | $ 3.63 | |||
| 25 | $ 3.28 | |||
| 25 | $ 3.32 | |||
| 100 | $ 3.12 | |||
| 100 | $ 3.12 | |||
| 1000 | $ 3.07 | |||
| 1000 | $ 3.10 | |||
| 3000 | $ 3.06 | |||
| 3000 | $ 3.09 | |||
| NAC | N/A | 1 | $ 3.90 | |
| 100 | $ 3.53 | |||
| 500 | $ 3.31 | |||
| 1000 | $ 3.23 | |||
| Newark | Reel | 100 | $ 3.12 | |
| Onlinecomponents.com | N/A | 750 | $ 8.14 | |
| 750 | $ 8.14 | |||
| 1500 | $ 4.29 | |||
| 1500 | $ 4.29 | |||
| 2250 | $ 2.95 | |||
| 2250 | $ 2.95 | |||
| 3000 | $ 2.89 | |||
| 3000 | $ 2.89 | |||
MCP3462 Series
Newer Device Available MCP3462R
| Part | Ratio - S/H:ADC | Package / Case | Package / Case | Package / Case | Reference Type | Sampling Rate (Per Second) | Number of Inputs | Number of Bits | Data Interface | Supplier Device Package | Input Type | Configuration | Architecture | Features | Number of A/D Converters | Mounting Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP3462RT-E/ST | 0:2 | 0.173 in | 4.4 mm | 20-TSSOP | External, Internal | 153.6 k | 2 | 16 bits | SPI | 20-TSSOP | Differential, Single Ended | MUX-ADC | Sigma-Delta | Internal Oscillator, Temperature Sensor | 2 | Surface Mount | 3.7 V | 1.8 V | 2.7 V | 3.6 V | 125 °C | -40 °C |
Microchip Technology MCP3462R-E/ST | 0:2 | 0.173 in | 4.4 mm | 20-TSSOP | External, Internal | 153.6 k | 2 | 16 bits | SPI | 20-TSSOP | Differential, Single Ended | MUX-ADC | Sigma-Delta | Internal Oscillator, Temperature Sensor | 2 | Surface Mount | 3.7 V | 1.8 V | 2.7 V | 3.6 V | 125 °C | -40 °C |
Microchip Technology MCP3462-E/ST | 0.173 in | 4.4 mm | 20-TSSOP | External | 153.6 k | 2 | 16 bits | SPI | 20-TSSOP | Differential, Single Ended | Sigma-Delta | Internal Oscillator, PGA, Temperature Sensor | 2 | Surface Mount | 3.7 V | 1.8 V | 2.7 V | 3.6 V | 125 °C | -40 °C | ||
Microchip Technology MCP3462T-E/NC | 20-UFQFN Exposed Pad | External | 153.6 k | 2 | 16 bits | SPI | 20-UQFN (3x3) | Differential, Single Ended | Sigma-Delta | Internal Oscillator, PGA, Temperature Sensor | 2 | Surface Mount | 2.7 V | 3.6 V | 125 °C | -40 °C | ||||||
Microchip Technology MCP3462T-E/ST | 0.173 in | 4.4 mm | 20-TSSOP | External | 153.6 k | 2 | 16 bits | SPI | 20-TSSOP | Differential, Single Ended | Sigma-Delta | Internal Oscillator, PGA, Temperature Sensor | 2 | Surface Mount | 3.7 V | 1.8 V | 2.7 V | 3.6 V | 125 °C | -40 °C | ||
Microchip Technology MCP3462RT-E/NC | 0:2 | 20-UFQFN Exposed Pad | External, Internal | 153.6 k | 2 | 16 bits | SPI | 20-UQFN (3x3) | Differential, Single Ended | MUX-ADC | Sigma-Delta | Internal Oscillator, Temperature Sensor | 2 | Surface Mount | 3.7 V | 1.8 V | 2.7 V | 3.6 V | 125 °C | -40 °C |
Description
General part information
MCP3462 Series
The [MCP3462R](https://www.microchip.com/en-us/product/MCP3462R) is a preferred, pin compatible option that should be used for new designs. The R version includes an onboard voltage reference which is not included in the MCP3462.
