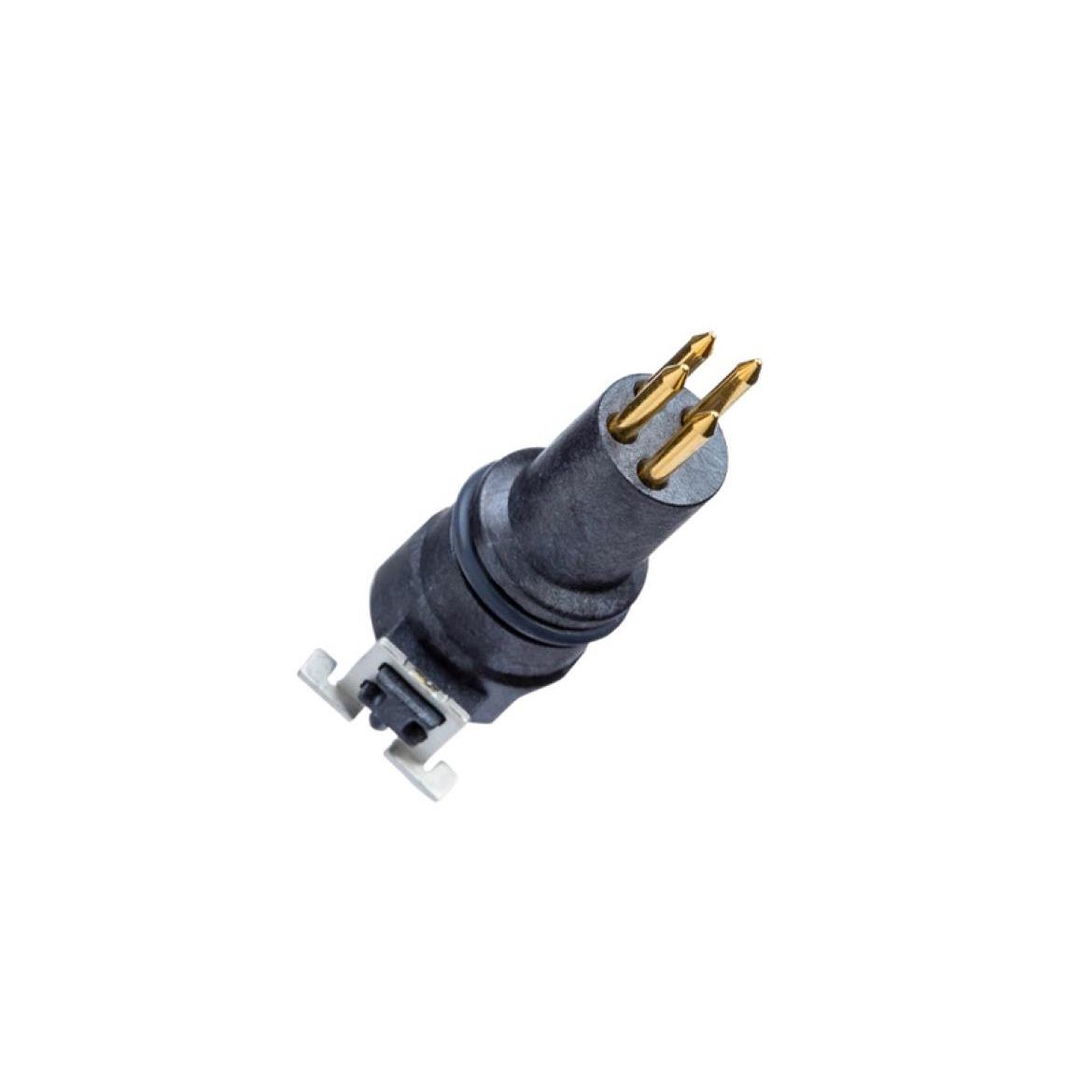

M8-04PMMT-EE0001
ActiveAmphenol LTW
M SERIES, M8, 3A, 04 PINS, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M8-04PMMT-EE0001 |
|---|---|
| Color | Black |
| Connector Type | Plug, Male Pins |
| Current Rating (Amps) | 3 A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M8-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M8-04PMMT Series
4 Position Circular Connector Plug, Male Pins Solder
