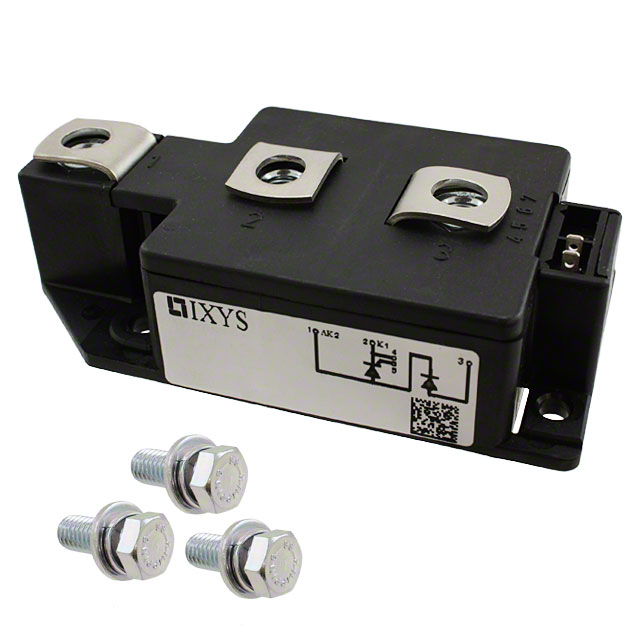

MCD310-18IO1

Active

IXYS

MOD THYRISTOR/DIODE 1800V Y2-DCB

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR/DIODE 1800V Y2-DCB

Technical Specifications

Parameters and characteristics for this part

Specification	MCD310-18IO1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	9800 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	9200 A
Current - On State (It (AV)) (Max) [Max]	320 A
Current - On State (It (RMS)) (Max) [Max]	500 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	Y2-DCB
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - On State (It (AV)) (Max) [Max]	Structure	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes	Current - On State (It (RMS)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Package / Case	Mounting Type
IXYS MCD310-08IO1	9800 A	9200 A	320 A	Series Connection - SCR/Diode	150 mA	1	500 A	150 mA	-40 °C	140 °C	800 V	2 V	Y2-DCB	Chassis Mount
IXYS MCD310-20IO1	9800 A	9200 A	320 A	Series Connection - SCR/Diode	150 mA	1	500 A	150 mA	-40 °C	140 °C	2 kV	2 V	Y2-DCB	Chassis Mount
IXYS MCD310-18IO1	9800 A	9200 A	320 A	Series Connection - SCR/Diode	150 mA	1	500 A	150 mA	-40 °C	140 °C	1.8 kV	2 V	Y2-DCB	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
