D2200N22TVFXPSA1

Active

Infineon Technologies

2200 V RECTIFIER DIODE IN A CERAMIC DISC WITH 74 MM DIA AND A HEIGHT OF 26 MM

Search across all available documentation for this part.

Active

Infineon Technologies

2200 V RECTIFIER DIODE IN A CERAMIC DISC WITH 74 MM DIA AND A HEIGHT OF 26 MM

Technical Specifications

Parameters and characteristics for this part

Specification	D2200N22TVFXPSA1

Current - Average Rectified (Io)	2200 A
Current - Reverse Leakage @ Vr	150 mA
Mounting Type	Clamp On
Operating Temperature - Junction [Max]	160 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	DO-200AC, K-PUK
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	BG-D7526K0-1
Technology	Standard

Part	Technology	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Speed	Speed	Current - Average Rectified (Io)	Supplier Device Package
Infineon Technologies D2200N22TVFXPSA1	Standard	DO-200AC K-PUK	-40 °C	160 °C	Clamp On	150 mA	Standard Recovery >500ns	200 mA	2200 A	BG-D7526K0-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

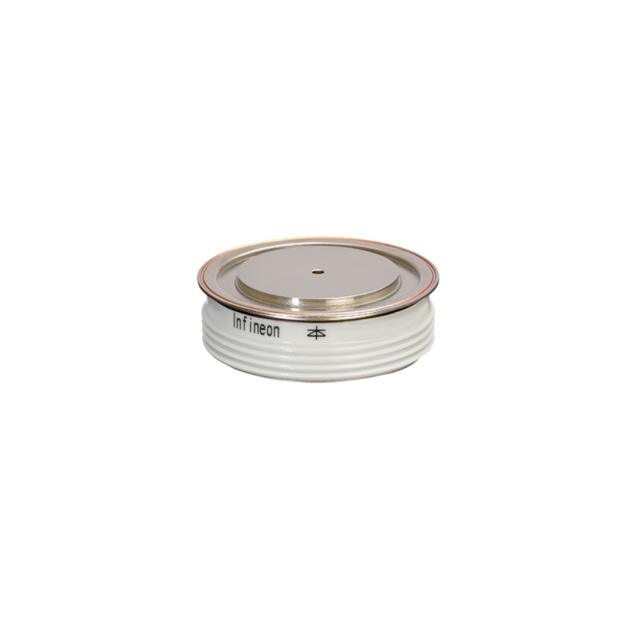

The D2200NRectifier Diode discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 75mm and a height of 26mm.
