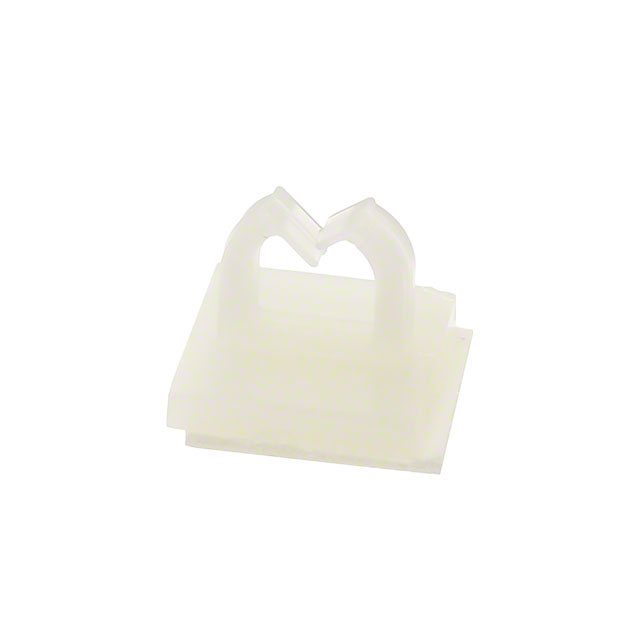

MWSEB-2-01A-RT

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.5 MM, 9.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.5 MM, 9.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	MWSEB-2-01A-RT

Adhesive	Acrylic Based (RMS-15)
Color	Natural
Height [z]	8.4 mm
Height [z]	0.331 "
Length	9.4 mm
Length	0.37 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Adhesive
Opening Size [x]	0.19 in
Opening Size [x]	4.83 mm
Opening Size [z]	3.3 mm
Opening Size [z]	0.13 in
Type	Clip, Wire Saddle on Base
Type Attributes	Micro
Width	9.4 mm
Width [x]	0.37 in

Part	Color	Material Flammability Rating	Height [z]	Height [z]	Mounting Type	Length	Length	Material	Type	Type Attributes	Adhesive	Opening Size [z]	Opening Size [z]	Opening Size [x]	Opening Size [x]	Width [x]	Width
Essentra Access Solutions MWSEB-6-01A-RT	Natural	UL94 V-2	0.62 in	15.75 mm	Adhesive	0.5 in	12.7 mm	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle on Base	Micro	Acrylic Based (RMS-15)	8.38 mm	0.33 in	0.36 in	9.14 mm
Essentra Access Solutions MWSEB-2-01A-RT	Natural	UL94 V-2	0.331 "	8.4 mm	Adhesive	0.37 in	9.4 mm	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle on Base	Micro	Acrylic Based (RMS-15)	3.3 mm	0.13 in	0.19 in	4.83 mm	0.37 in	9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle on Base Natural Adhesive 0.190" L x 0.130" H (4.83mm x 3.30mm)
