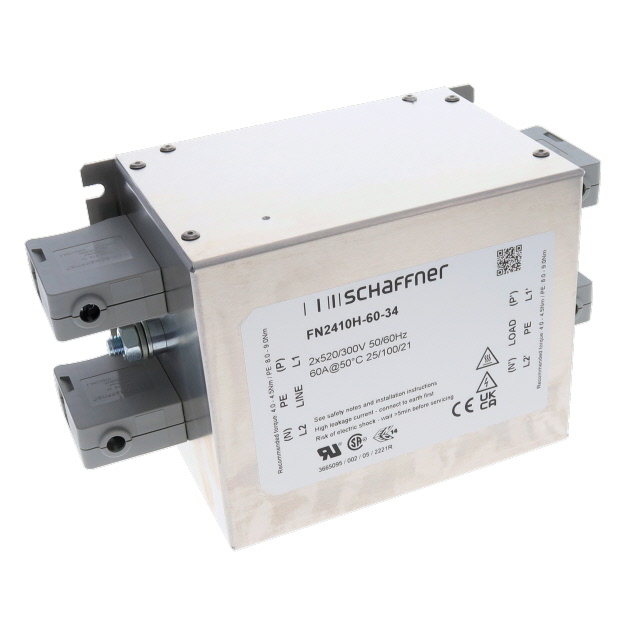

FN2410H-60-34

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 520V/300VAC 60A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2410H-60-34

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 520V/300VAC 60A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2410H-60-34

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	60 A
Filter Type	Single Phase
Frequency - Operating	250 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	520 V, 300 V

Schaffner FN2410 Series

Part	Mounting Type	Termination Style	Approval Agency	Current	Filter Type	Operating Temperature [custom]	Configuration	Voltage - Rated AC	Frequency - Operating	Applications
TE Connectivity Raychem Cable Protection FN2410H-32-33	Chassis Mount	Terminal Block	CSA ENEC UR	32 A	Single Phase	-25 °C 100 °C	Single Stage	300 V 520 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410H-8-44	Chassis Mount	Terminal Block	CSA ENEC UR	8 A	Single Phase	-25 °C 100 °C	Single Stage	300 V 520 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410H-25-33	Chassis Mount	Terminal Block	CSA ENEC UR	25 A	Single Phase	-25 °C 100 °C	Single Stage	300 V 520 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410-45-33	Chassis Mount	Terminal Block	CSA ENEC UR	45 A	Single Phase	-25 °C 100 °C	Single Stage	250 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410-60-34	Chassis Mount	Terminal Block	CSA ENEC UR	60 A	Single Phase	-25 °C 100 °C	Single Stage	250 V	250 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410-8-44	Chassis Mount	Terminal Block	CSA ENEC UR	8 A	Single Phase	-25 °C 100 °C	Single Stage	250 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410H-80-34	Chassis Mount	Terminal Block	CSA ENEC UR	80 A	Single Phase	-25 °C 100 °C	Single Stage	300 V 520 V	250 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410-16-44	Chassis Mount	Terminal Block	CSA ENEC UR	16 A	Single Phase	-25 °C 100 °C	Single Stage	250 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410-100-34	Chassis Mount	Terminal Block	CSA ENEC UR	100 A	Single Phase	-25 °C 100 °C	Single Stage	250 V	400 Hz	General Purpose
TE Connectivity Raychem Cable Protection FN2410H-60-34	Chassis Mount	Terminal Block	CSA ENEC UR	60 A	Single Phase	-25 °C 100 °C	Single Stage	300 V 520 V	250 Hz	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 216.22
		10	$ 184.72

Description

General part information

Schaffner FN2410 Series

Single Phase EMC/EMI Line Filter 60 A 520V, 300V 250Hz Single Stage Terminal Block
