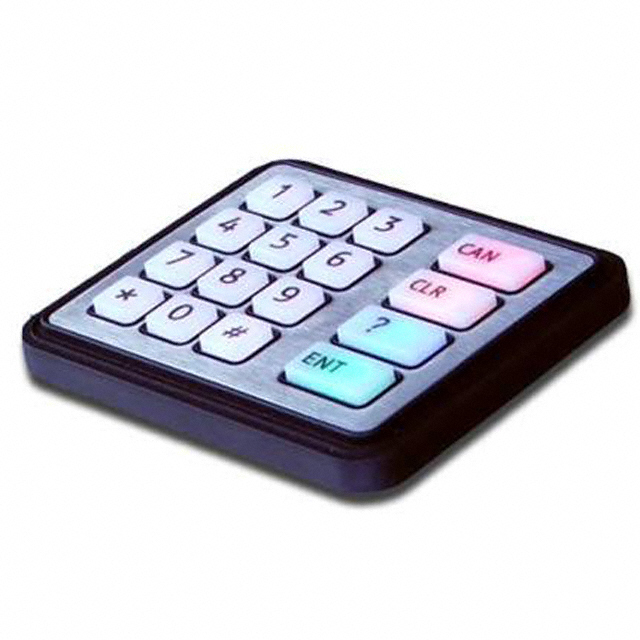

Specification	8616-410023

Approval Agency	cURus, CE
Color	Translucent
Contact Rating (Current)	0.05 A
Illumination	Illuminated
Illumination Voltage (Nominal)	5 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Key Type	Transparent Key Cap
Legend	Function Keys, Telephone Format
Legend Color	Black
Legend Type	Fixed
Matrix Columns	4
Matrix Rows	4
Mounting Type	Panel Mount, Front or Rear
Number of Keys	16
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Operational Life	4000000 Cycles
Output Type	Matrix
Panel Cutout Length	97 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	79 mm
Switch Type	Conductive Rubber
Termination Style	Pin Header

8616 Series

Part	Ingress Protection IP Rating	Ingress Protection Description	Color	Key Type	Matrix Columns	Matrix Rows	Operating Temperature (Max)	Operating Temperature (Min)	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Number of Keys	Switch Type	Mounting Type	Legend Color	Output Type	Contact Rating (Current)	Illumination	Legend	Termination Style	Legend Type	Approval Agency	Operational Life	Features	Illumination Voltage (Nominal)
STORM INTERFACE 8616-210023	IP65	Dust Tight Water Resistant	Multiple	Polymer	4	4	60 °C	-20 °C	Rectangular	79 mm	97 mm	16	Conductive Rubber	Front or Rear Panel Mount	Black White	Matrix	0.05 A	Non-Illuminated	Function Keys Telephone Format	Pin Header	Fixed	CE cURus	4000000 Cycles
STORM INTERFACE 8616-310023	IP65	Dust Tight Water Resistant	Multiple	Metal	4	4	60 °C	-20 °C	Rectangular	79 mm	97 mm	16	Conductive Rubber	Front or Rear Panel Mount	Black	Matrix	0.05 A	Non-Illuminated	Function Keys Telephone Format	Pin Header	Fixed	CE cURus	4000000 Cycles	Anti-Vandal
STORM INTERFACE 8616-410023	IP65	Dust Tight Water Resistant	Translucent	Transparent Key Cap	4	4	60 °C	-20 °C	Rectangular	79 mm	97 mm	16	Conductive Rubber	Front or Rear Panel Mount	Black	Matrix	0.05 A	Illuminated	Function Keys Telephone Format	Pin Header	Fixed	CE cURus	4000000 Cycles		5 V
