DMN2011UCA6-7
ActiveDiodes Inc
N-CHANNEL ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Search across all available documentation for this part.
DMN2011UCA6-7
ActiveDiodes Inc
N-CHANNEL ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN2011UCA6-7 |
|---|---|
| Configuration | 2 N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9 A |
| Drain to Source Voltage (Vdss) | 22 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1580 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-SMD, No Lead |
| Power - Max [Max] | 800 mW |
| Rds On (Max) @ Id, Vgs [Max] | 6.5 mOhm |

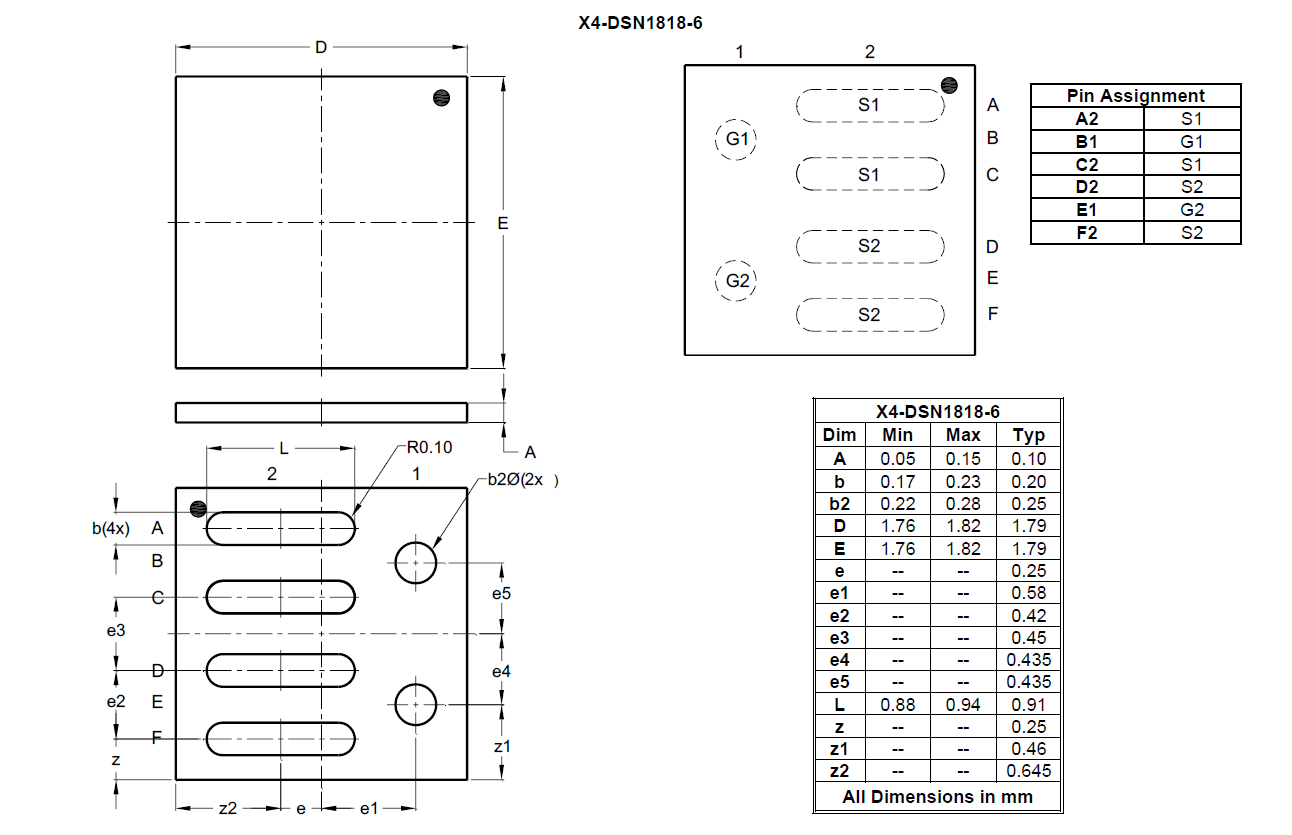

| Supplier Device Package | X4-DSN1818-6 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.28 | |
| 6000 | $ 0.26 | |||
| 9000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
| 21000 | $ 0.24 | |||
| 30000 | $ 0.23 | |||
Description
General part information
DMN2011UCA6 Series
This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Documents
Technical documentation and resources
