LV5044V-TLM-E

Obsolete

Sanyo

STEP-DOWN DC-DC CONTROLLER

Search across all available documentation for this part.

Obsolete

Sanyo

STEP-DOWN DC-DC CONTROLLER

Technical Specifications

Parameters and characteristics for this part

Specification	LV5044V-TLM-E

Clock Sync	False
Control Features	Current Limit, Soft Start, Power Good
Duty Cycle (Max) [Max]	82 %
Frequency - Switching [Max]	1.1 MHz
Frequency - Switching [Min]	250 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-20 °C
Output Configuration	Positive
Output Phases	2
Output Type	Transistor Driver

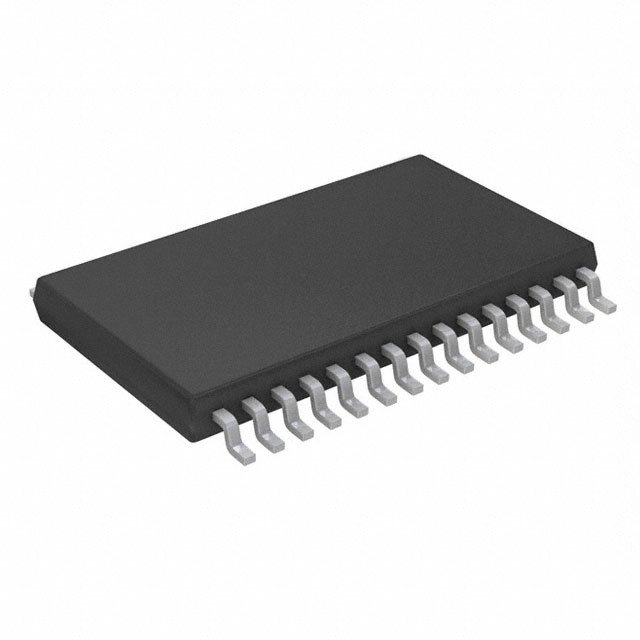

Package / Case	30-LSSOP
Package / Case [y]	5.6 mm
Package / Case [y]	0.22 in
Supplier Device Package	30-SSOP
Synchronous Rectifier	True
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	16 V
Voltage - Supply (Vcc/Vdd) [Min]	4.5 V

Part	Supplier Device Package	Topology	Package / Case	Package / Case [y]	Package / Case [y]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Output Type	Output Configuration	Clock Sync	Output Phases	Control Features	Function	Duty Cycle (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Synchronous Rectifier	Frequency - Switching [Min]	Frequency - Switching [Max]	Mounting Type
Sanyo LV5044V-TLM-E	30-SSOP	Buck	30-LSSOP	5.6 mm	0.22 in	16 V	4.5 V	Transistor Driver	Positive		2	Current Limit Power Good Soft Start	Step-Down	82 %	2	-20 °C	85 C		250 kHz	1.1 MHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	98	$ 3.09

General part information

Buck Regulator Positive Output Step-Down DC-DC Controller IC 30-SSOP

Technical documentation and resources

No documents available
