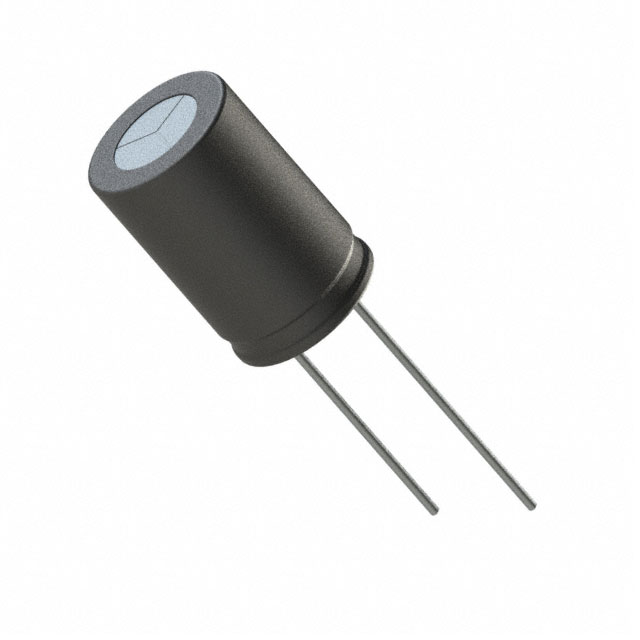

ESH106M400AH2AA

Active

KEMET

CAP ALUM 10UF 20% 400V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 10UF 20% 400V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESH106M400AH2AA

Applications	General Purpose
Capacitance	10 µF
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	128 mA
Ripple Current @ Low Frequency	80 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	400 V

Part	Tolerance	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Polarization	Voltage - Rated	Capacitance	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESH106M450AH4AA	20 %	General Purpose	Radial Can	-25 °C	105 ░C	Through Hole	22 mm	0.866 in	5 mm	0.197 in	85 mA	136 mA	Polar	450 V	10 µF	2000 Hrs	10 mm	0.394 in
KEMET ESH106M035AC3AA	20 %	General Purpose	Radial Can	-40 °C	105 ░C	Through Hole			2 mm	0.079 in	44 mA	88 mA	Polar	35 V	10 µF	2000 Hrs	5 mm	0.197 "	0.492 in	12.5 mm
KEMET ESH106M063AC3AA	20 %	General Purpose	Radial Can	-40 °C	105 ░C	Through Hole			2 mm	0.079 in		110 mA	Polar	63 V	10 µF	2000 Hrs	5 mm	0.197 "	0.492 in	12.5 mm
KEMET ESH106M100AE3AA	20 %	General Purpose	Radial Can	-40 °C	105 ░C	Through Hole			2.5 mm	0.098 in	65 mA	130 mA	Polar	100 V	10 µF	2000 Hrs	6.3 mm	0.248 in	0.492 in	12.5 mm
KEMET ESH106M400AH2AA	20 %	General Purpose	Radial Can	-25 °C	105 ░C	Through Hole	17 mm	0.669 in	5 mm	0.197 in	80 mA	128 mA	Polar	400 V	10 µF	2000 Hrs	10 mm	0.394 in
KEMET ESH106M350AH2AA	20 %	General Purpose	Radial Can	-25 °C	105 ░C	Through Hole	17 mm	0.669 in	5 mm	0.197 in	80 mA	128 mA	Polar	350 V	10 µF	2000 Hrs	10 mm	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
