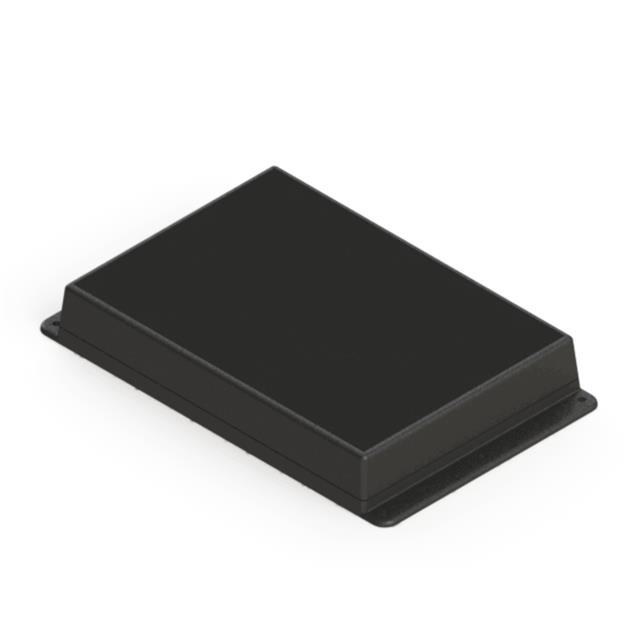

WM071I,BK

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 27.94 MM, 125 MM, 200 MM, IP40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

WM071I,BK

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 27.94 MM, 125 MM, 200 MM, IP40

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM071I,BK

Area (L x W) [custom]	217 cm˛
Area (L x W) [custom]	33.6 in˛
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	27.94 mm
Height [z]	1.1 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.347 lb
Weight	157.4 g

WM071 Series

Part	Height [z]	Height [z]	Design	Ratings	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Container Type	Weight	Weight	Thickness	Thickness	Material	Features	Area (L x W)	Area (L x W)
Serpac WM071,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount
Serpac WM071R,BK	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071,BK	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071I,BK	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount
Serpac WM071I,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071,GY	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071I,GY	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071R,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071RI,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071RI,GY	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.35
		10	$ 14.28
		25	$ 12.98
		50	$ 11.16
		100	$ 9.86
		250	$ 8.31
		500	$ 7.27
		1000	$ 6.75

Description

General part information

WM071 Series

Box Plastic, ABS Black Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

Drawing EN

Datasheet
