341-120-555-203

Active

EDAC Inc.

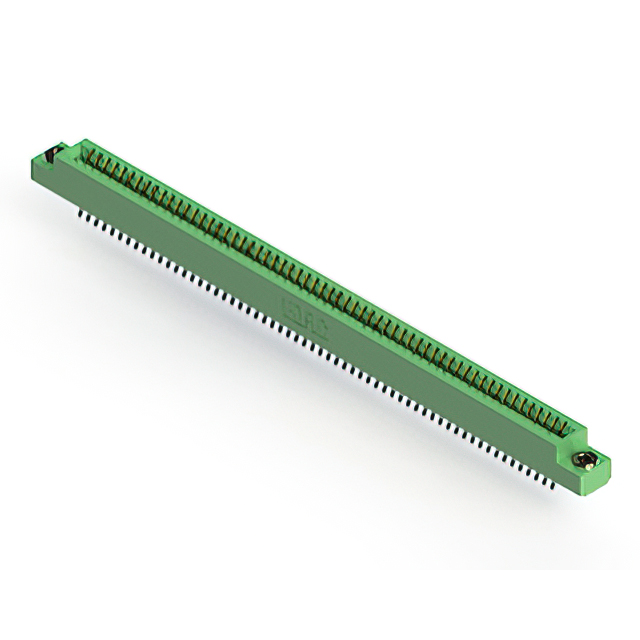

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 120 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-120-555-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 120 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-120-555-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	120
Number of Positions/Bay/Row [custom]	60
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

341-120 Series

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Read Out	Flange Feature	Color	Termination	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions/Bay/Row [custom]	Gender	Contact Finish	Card Type	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-120-521-208	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Through Hole	120	Dual	4-40 Flush Mount Threaded Insert Top Opening	Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 341-120-555-207	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Board Edge Straddle Mount	120	Dual	Flush Mount M3 Threaded Insert Top Opening	Green	Solder Eyelet(s)	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 341-120-556-208	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Board Edge Straddle Mount	120	Dual	4-40 Flush Mount Threaded Insert Top Opening	Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 341-120-560-201	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Board Edge Straddle Mount	120	Dual		Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 341-120-555-203	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Board Edge Straddle Mount	120	Dual	Floating Bobbin Flush Mount	Green	Solder Eyelet(s)	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	0.116 in	2.95 mm
EDAC Inc. 341-120-556-207	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Through Hole	120	Dual	Flush Mount M3 Threaded Insert Top Opening	Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 341-120-522-208	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Through Hole	120	Dual	4-40 Flush Mount Threaded Insert Top Opening	Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 341-120-556-201	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Board Edge Straddle Mount	120	Dual		Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 341-120-556-202	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Board Edge Straddle Mount	120	Dual	Flush Mount Top Opening Unthreaded	Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	0.128 "	3.25 mm
EDAC Inc. 341-120-520-208	Copper Alloy	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Through Hole	120	Dual	4-40 Flush Mount Threaded Insert Top Opening	Green	Solder	2.54 mm	0.1 in	2	60	Female	Gold	Non Specified - Dual Edge	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 26.22
Newark	Each	1	$ 29.30
		100	$ 17.33
		250	$ 15.85
		500	$ 12.95
		1000	$ 11.11

Description

General part information

341-120 Series

120 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
