18980-7PG-522

Active

Conxall/Switchcraft

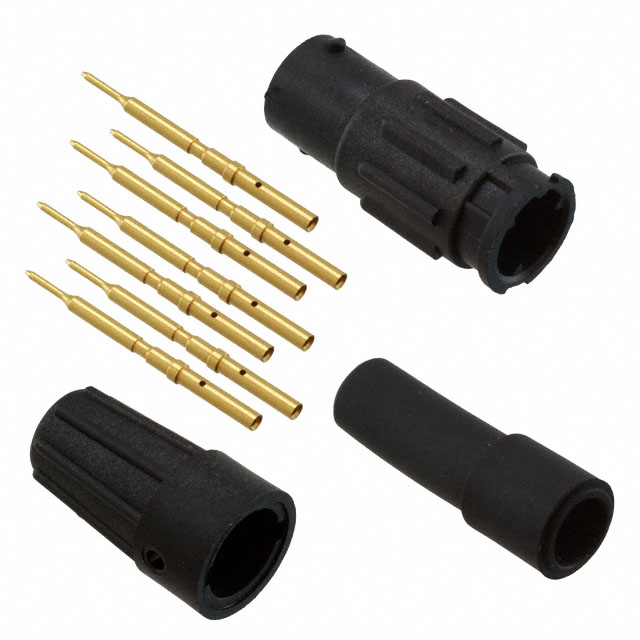

CONN RCPT MALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	18980-7PG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT MALE 7POS GOLD CRIMP

Part	Fastening Type	Shielding	Mounting Type	Termination	Number of Positions	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Ingress Protection	Color	Connector Type	Material Flammability Rating	Backshell Material, Plating	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Orientation	Applications
Conxall/Switchcraft 18980-7PG-522	Bayonet Lock	Unshielded	Free Hanging (In-Line)	Crimp	7	Plastic	5.84 mm	0.22 in	5.59 mm	0.23 in	Backshell	85 °C	-40 °C	Copper Alloy	IP67 - Dust Tight, Waterproof	Black	Male Pins, Receptacle	UL94 HB	Thermoplastic	Gold	600 VAC	3.5 A	B	Data, Industrial, Instrumentation, Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Crimp
