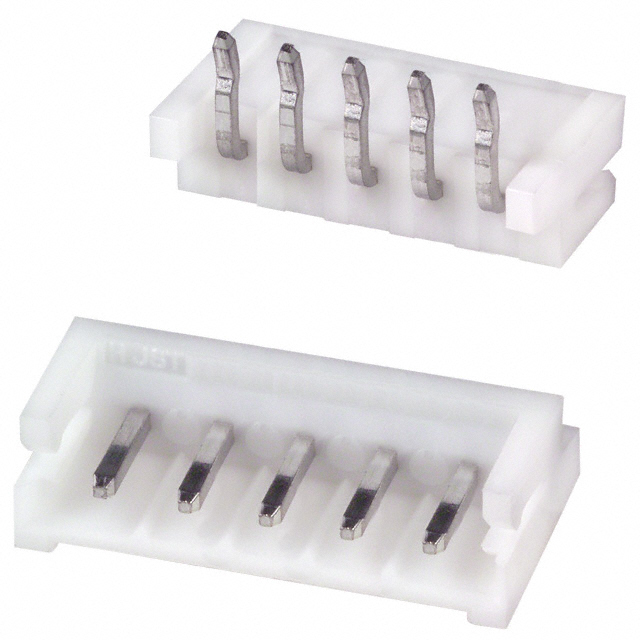

S5B-EH
ActiveJST Sales America Inc.
CONN HEADER R/A 5POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
S5B-EH
ActiveJST Sales America Inc.
CONN HEADER R/A 5POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S5B-EH |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock |
| Insulation Color | Natural |
| Insulation Height [z] | 0.165 in |
| Insulation Height [z] | 4.2 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.11 | |||
| 10000 | $ 0.10 | |||
Description
General part information
S5B-EH(L Series
Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
