1-787082-8
ActiveTE Connectivity AMP Connectors

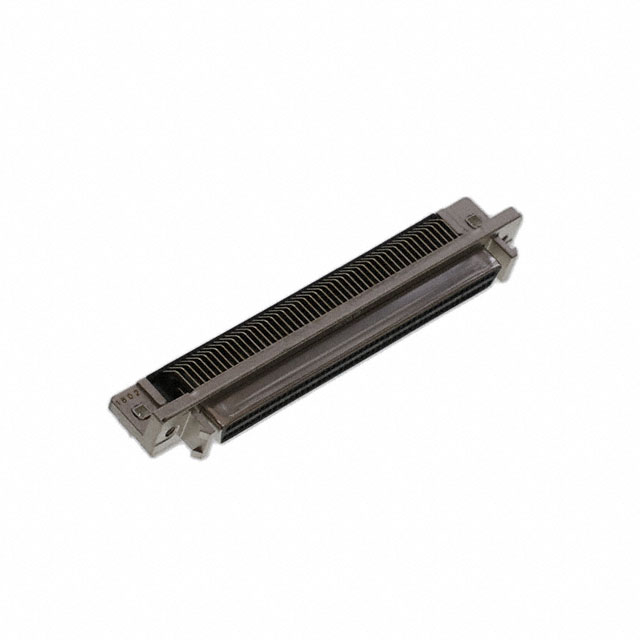

CONN D-TYPE RCPT 100POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-787082-8
ActiveTE Connectivity AMP Connectors
CONN D-TYPE RCPT 100POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-787082-8 | 787082 Series |
|---|---|---|
| Backset Spacing | 3.71 mm | 3.71 mm |
| Backset Spacing | 0.146 in | 0.146 in |
| Color | Black | Black |
| Connector Style | D-Type | D-Type |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Dielectric Material | Thermoplastic | Thermoplastic |
| Features | Shielded, Board Lock | Shielded, Board Lock |
| Flange Feature | Housing/Shell (2-56), Latchblocks | Housing/Shell (2-56), Latchblocks |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 100 | 26 - 100 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel | Nickel Plated, Steel |
| Shell Size, Connector Layout [x] | 0.05 | 0.05 |
| Shell Size, Connector Layout [y] | 0.1 | 0.1 |
| Termination | Solder | Solder |
| Voltage Rating | 30 VDC | 30 VDC |
787082 Series
CONN D-TYPE RCPT 68POS R/A SLDR
| Part | Number of Rows | Contact Material | Termination | Shell Material, Finish | Material Flammability Rating | Voltage Rating | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Connector Type | Color | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [y] | Connector Style | Contact Finish | Mounting Type | Features | Backset Spacing | Backset Spacing | Flange Feature | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 787082-7 | 2 | Phosphor Bronze | Solder | Nickel Plated, Steel | UL94 V-0 | 30 VDC | Signal | 105 ░C | -55 °C | Thermoplastic | Receptacle, Female Sockets | Black | 0.05 | 0.1 | D-Type | Gold | Board Edge, Right Angle, Through Hole | Board Lock, Shielded | 3.71 mm | 0.146 in | Housing/Shell (2-56), Latchblocks | 68 |
TE Connectivity AMP Connectors 1-787082-8 | 2 | Phosphor Bronze | Solder | Nickel Plated, Steel | UL94 V-0 | 30 VDC | Signal | 105 ░C | -55 °C | Thermoplastic | Receptacle, Female Sockets | Black | 0.05 | 0.1 | D-Type | Gold | Board Edge, Right Angle, Through Hole | Board Lock, Shielded | 3.71 mm | 0.146 in | Housing/Shell (2-56), Latchblocks | 100 |
TE Connectivity AMP Connectors 787082-5 | 2 | Phosphor Bronze | Solder | Nickel Plated, Steel | UL94 V-0 | 30 VDC | Signal | 105 ░C | -55 °C | Thermoplastic | Receptacle, Female Sockets | Black | 0.05 | 0.1 | D-Type | Gold | Board Edge, Right Angle, Through Hole | Board Lock, Shielded | 3.71 mm | 0.146 in | Housing/Shell (2-56), Latchblocks | 50 |
TE Connectivity AMP Connectors 787082-2 | 2 | Phosphor Bronze | Solder | Nickel Plated, Steel | UL94 V-0 | 30 VDC | Signal | 105 ░C | -55 °C | Thermoplastic | Receptacle, Female Sockets | Black | 0.05 | 0.1 | D-Type | Gold | Board Edge, Right Angle, Through Hole | Board Lock, Shielded | 3.71 mm | 0.146 in | Housing/Shell (2-56), Latchblocks | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 26.84 | |
| 12 | $ 22.52 | |||
| 30 | $ 21.11 | |||
| 54 | $ 20.63 | |||
Description
General part information
787082 Series
100 Position D-Type Receptacle, Female Sockets Connector
