787082-2

Active

TE Connectivity AMP Connectors

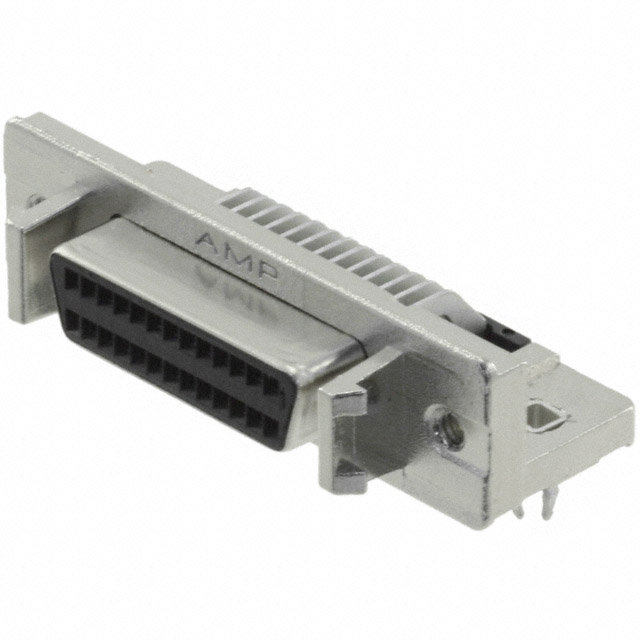

CONN D-TYPE RCPT 26POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

787082-2

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 26POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 2.68

Description

General part information

787082 Series

26 Position D-Type Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787082-2	787082 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Housing/Shell (2-56), Latchblocks	Housing/Shell (2-56), Latchblocks
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	26	26 - 100
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

787082 Series

CONN D-TYPE RCPT 68POS R/A SLDR

Part	Number of Rows	Contact Material	Termination	Shell Material, Finish	Material Flammability Rating	Voltage Rating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Connector Type	Color	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Connector Style	Contact Finish	Mounting Type	Features	Backset Spacing	Backset Spacing	Flange Feature	Number of Positions
TE Connectivity AMP Connectors 787082-7	2	Phosphor Bronze	Solder	Nickel Plated, Steel	UL94 V-0	30 VDC	Signal	105 ░C	-55 °C	Thermoplastic	Receptacle, Female Sockets	Black	0.05	0.1	D-Type	Gold	Board Edge, Right Angle, Through Hole	Board Lock, Shielded	3.71 mm	0.146 in	Housing/Shell (2-56), Latchblocks	68
TE Connectivity AMP Connectors 1-787082-8	2	Phosphor Bronze	Solder	Nickel Plated, Steel	UL94 V-0	30 VDC	Signal	105 ░C	-55 °C	Thermoplastic	Receptacle, Female Sockets	Black	0.05	0.1	D-Type	Gold	Board Edge, Right Angle, Through Hole	Board Lock, Shielded	3.71 mm	0.146 in	Housing/Shell (2-56), Latchblocks	100
TE Connectivity AMP Connectors 787082-5	2	Phosphor Bronze	Solder	Nickel Plated, Steel	UL94 V-0	30 VDC	Signal	105 ░C	-55 °C	Thermoplastic	Receptacle, Female Sockets	Black	0.05	0.1	D-Type	Gold	Board Edge, Right Angle, Through Hole	Board Lock, Shielded	3.71 mm	0.146 in	Housing/Shell (2-56), Latchblocks	50
TE Connectivity AMP Connectors 787082-2	2	Phosphor Bronze	Solder	Nickel Plated, Steel	UL94 V-0	30 VDC	Signal	105 ░C	-55 °C	Thermoplastic	Receptacle, Female Sockets	Black	0.05	0.1	D-Type	Gold	Board Edge, Right Angle, Through Hole	Board Lock, Shielded	3.71 mm	0.146 in	Housing/Shell (2-56), Latchblocks	26
