1-776231-2

Active

TE Connectivity AMP Connectors

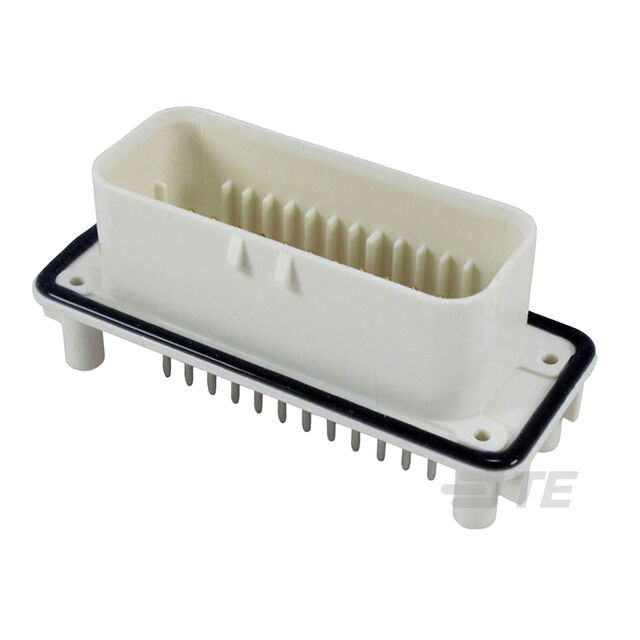

CONN HEADER VERT 35POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

1-776231-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 35POS 4MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-776231-2	776231 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	Gold-Palladium	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealed, Mounting Flange	Sealed, Mounting Flange
Insulation Color	Natural	Blue, Black, Orange, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	35	35
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776231 Series

CONN HEADER VERT 35POS 4MM

Part	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Voltage Rating	Connector Type	Number of Rows	Insulation Material	Mounting Type	Contact Shape	Contact Material	Features	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Style	Insulation Color	Pitch - Mating	Pitch - Mating	Applications	Contact Type	Contact Finish - Mating
TE Connectivity AMP Connectors 776231-5	35	Varies by Wire Gauge	All	0.157 in	4 mm	Locking Ramp	Solder	250 VAC	Header	3	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Through Hole	Circular	Brass	Mounting Flange, Sealed	Shrouded - 4 Wall	-40 °C	105 ░C	Board to Cable/Wire	Blue	0.157 "	4 mm	Automotive, Industrial	Male Pin
TE Connectivity AMP Connectors 776231-1	35	Varies by Wire Gauge	All	0.157 in	4 mm	Locking Ramp	Solder	250 VAC	Header	3	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Through Hole	Circular	Brass	Mounting Flange, Sealed	Shrouded - 4 Wall	-40 °C	105 ░C	Board to Cable/Wire	Black	0.157 "	4 mm	Automotive, Industrial	Male Pin
TE Connectivity AMP Connectors 1-776231-6	35	Varies by Wire Gauge	All	0.157 in	4 mm	Locking Ramp	Solder	250 VAC	Header	3	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Through Hole	Circular	Brass	Mounting Flange, Sealed	Shrouded - 4 Wall	-40 °C	125 °C	Board to Cable/Wire	Orange	0.157 "	4 mm	Automotive, Industrial	Male Pin	Gold-Palladium
TE Connectivity AMP Connectors 1-776231-5	35	Varies by Wire Gauge	All	0.157 in	4 mm	Locking Ramp	Solder	250 VAC	Header	3	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Through Hole	Circular	Brass	Mounting Flange, Sealed	Shrouded - 4 Wall	-40 °C	125 °C	Board to Cable/Wire	Blue	0.157 "	4 mm	Automotive, Industrial	Male Pin	Gold-Palladium
TE Connectivity AMP Connectors 1-776231-2	35	Varies by Wire Gauge	All	0.157 in	4 mm	Locking Ramp	Solder	250 VAC	Header	3	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Through Hole	Circular	Brass	Mounting Flange, Sealed	Shrouded - 4 Wall	-40 °C	125 °C	Board to Cable/Wire	Natural	0.157 "	4 mm	Automotive, Industrial	Male Pin	Gold-Palladium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.68
		32	$ 19.71
		96	$ 18.74
		448	$ 16.80

Description

General part information

776231 Series

Connector Header Panel Mount, Through Hole 35 position 0.157" (4.00mm)

Documents

Technical documentation and resources

No documents available
