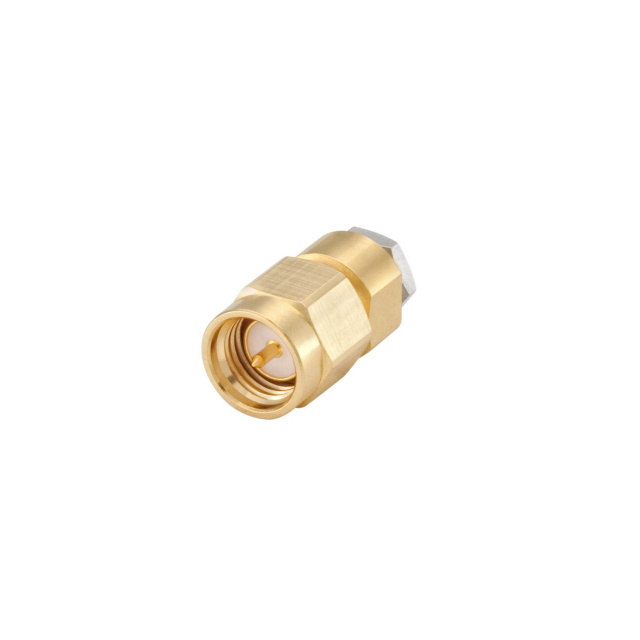

32S101-270L5

Active

Rosenberger

SMA STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

SMA STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	32S101-270L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	UT-47
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Mating Cycles	Center Contact Plating	Number of Ports	Frequency - Max [Max]	Mounting Feature	Body Material	Connector Style	Shield Termination	Body Finish	Housing Color	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Type	Contact Termination	Center Contact Material	Cable Group	Dielectric Material
Rosenberger 32S101-270L5	500	Gold	1	18 GHz	Bulkhead	Beryllium Copper	SMA	Solder	Gold	Gold	480 V	Free Hanging (In-Line)	-65 ░C	165 °C	50 Ohms	Male Pin Plug	Solder	Brass	UT-47	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
