25164 BK005

Active

ALPHA WIRE

CABLE 4COND 18AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 18AWG BLK SHLD 100'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 694.28

General part information

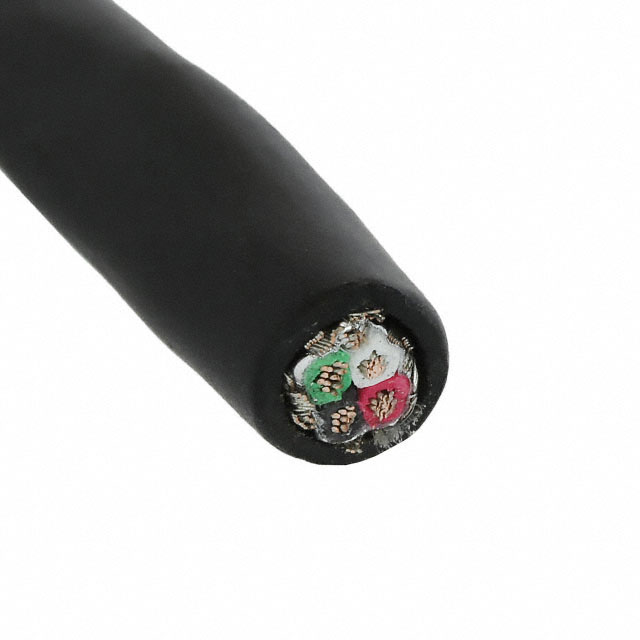

4 Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid 100.0' (30.5m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25164 BK005	25164 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	7.29 mm	7.29 mm
Jacket (Insulation) Diameter [diameter]	0.287 "	0.287 "
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	4	4
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Suprashield®	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	18 AWG	18 AWG

XTRA-GUARD 2 /BULK FT /FT ROHS COMPLIANT: YES

Part	Shield Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Number of Conductors	Conductor Insulation	Shield Coverage	Cable Type	Conductor Material	Shield Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Ratings	Length	Length	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 25164 BK199	Copper, Tinned, Suprashield®	Black	-30 ░C	90 °C	18 AWG	4	Poly-Vinyl Chloride (PVC)	70 %, 100 %	Multi-Conductor	Copper, Tinned	Braid, Foil	300 V	16	30 AWG	Polyurethane (PU)	ISO 10993, UL Style 20668	1000 ft	304.8 m	Biological Compatibility, Drain Wire, Rip Cord	7.29 mm	0.287 "
ALPHA WIRE 25164 BK005	Copper, Tinned, Suprashield®	Black	-30 ░C	90 °C	18 AWG	4	Poly-Vinyl Chloride (PVC)	70 %, 100 %	Multi-Conductor	Copper, Tinned	Braid, Foil	300 V	16	30 AWG	Polyurethane (PU)	ISO 10993, UL Style 20668			Biological Compatibility, Drain Wire, Rip Cord	7.29 mm	0.287 "	30.5 m	100 ft
