Technical Specifications
Parameters and characteristics for this part
| Specification | ZXMS6006DT8QTA |
|---|---|
| Current - Output (Max) | 2.8 A |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit, Over Current |
| Features | Load Discharge |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |

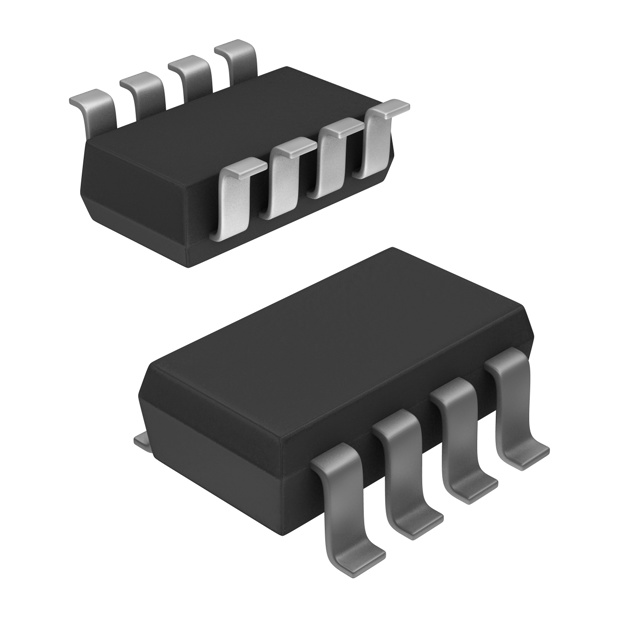

| Package / Case | SOT-223-8 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 75 mOhm |
| Supplier Device Package | SM-8 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 5.5 V |
| Voltage - Load [Min] | 0 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.07 | |
| 2000 | $ 1.02 | |||
| 5000 | $ 0.98 | |||
| 10000 | $ 0.98 | |||
Description
General part information
ZXMS6006DT8Q Series
The ZXMS6006SG is a self protected low side IntelliFET™ MOSFET with logic level input. It integrates over-temperature, over-current, over-voltage (active clamp) and ESD protected logic level functionality. The ZXMS6006SG is ideal as a general purpose switch driven from 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs are not rugged enough.
